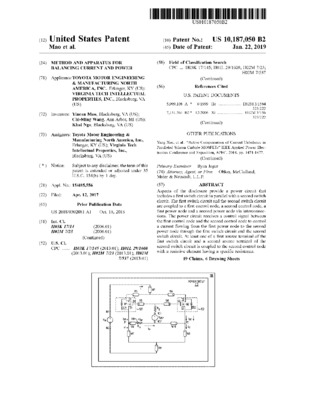

Method and apparatus for balancing current and power

Files
TR Number
Date
2019-01-22
Authors
Journal Title
Journal ISSN
Volume Title
Publisher
United States Patent and Trademark Office
Abstract

Aspects of the disclosure provide a power circuit that includes a first switch circuit in parallel with a second switch circuit. The first switch circuit and the second switch circuit are coupled to a first control node, a second control node, a first power node and a second power node via interconnections. The power circuit receives a control signal between the first control node and the second control node to control a current flowing from the first power node to the second power node through the first switch circuit and the second switch circuit. At least one of a first source terminal of the first switch circuit and a second source terminal of the second switch circuit is coupled to the second control node with a resistive element having a specific resistance.

Description
Keywords
Citation
