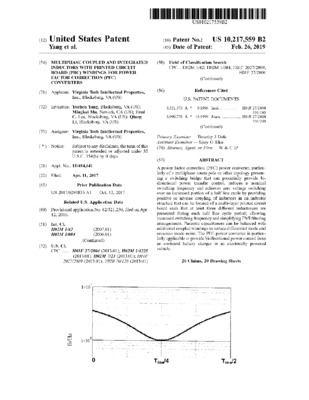

    Multiphase coupled and integrated inductors with printed circuit board (PBC) windings for power factor correction (PFC) converters

    Thumbnail
    View/Open
    10217559.pdf (2.118Mb)
    Downloads: 91
    Publication Date
    2019-02-26
    Filing Date
    2017-04-11
    Inventor
    Lee, Fred C.
    Yang, Yu-Chen
    Li, Qiang
    Mu, Mingkai
    Metadata
    Show full item record
    Abstract
    A power factor correction (PFC) power converter, particularly of a multiphase totem-pole or other topology presenting a switching bridge that can potentially provide bi-directional power transfer control, reduces a nominal switching frequency and achieves zero voltage switching over an increased portion of a half line cycle by providing positive or inverse coupling of inductors in an inductor structure that can be formed of a multi-layer printed circuit board such that at least three different inductances are presented during each half line cycle period; allowing increased switching frequency and simplifying EMI filtering arrangements. Parasitic capacitances can be balanced with additional coupled windings to reduce differential mode and common mode noise. The PFC power converter is particularly applicable to provide bi-directional power control from an on-board battery charger in an electrically powered vehicle.
    Assignee
    Virginia Tech Intellectual Properties, Inc.
    Patent Number
    10217559
    Application Number
    15484641
    Source URL
    http://pimg-fpiw.uspto.gov/fdd/59/175/102/0.pdf
    Primary/U.S. Class
    Other/U.S. Class
    CPC Class
    H01F27/2804
    H01F2027/2809
    H02M1/4225
    H02M7/23
    Y02B70/10
    Patent Type
    utility
    URI
    http://hdl.handle.net/10919/102846
    Collections
    • Virginia Tech Patents [689]
