    Split-spectrum self-referenced fiber optic sensor

    Thumbnail
    View/Open

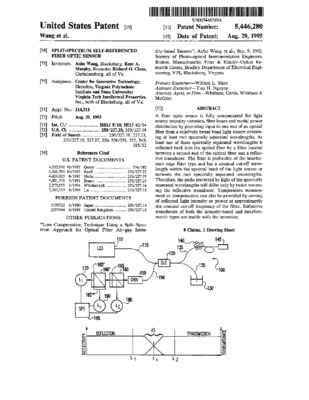

    5446280.pdf (598.2Kb)
    Downloads: 56
    Date
    1995-08-29
    Inventor
    Murphy, Kent A.
    Claus, Richard O.
    Wang, Anbo
    Metadata
    Show full item record
    Abstract
    A fiber optic sensor is fully compensated for light source intensity variation, fiber losses and modal power distribution by providing input to one end of an optical fiber from a relatively broad band light source containing at least two spectrally separated wavelengths. At least one of these spectrally separated wavelengths is reflected back into the optical fiber by a filter located between a second end of the optical fiber and a reflective transducer. The filter is preferably of the interference edge filter type and has a nominal cut-off wavelength within the spectral band of the light source or between the two spectrally separated wavelengths. Therefore, the paths traversed by light of the spectrally separated wavelengths will differ only by twice traversing the reflective transducer. Temperature measurement or compensation can also be provided by sensing of reflected light intensity or power at approximately the nominal cut-off frequency of the filter. Reflective transducers of both the intensity-based and interferometric types are usable with the invention.
    URI
    http://hdl.handle.net/10919/72298
    Collections
    • Scholarly Works, Electrical and Computer Engineering [531]
    • Virginia Tech Patents [619]
