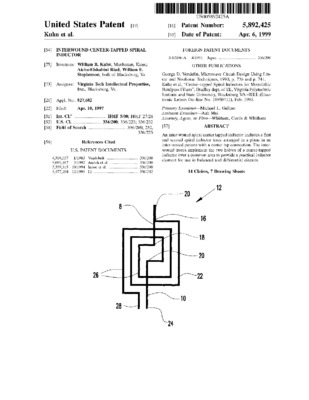

Interwound center-tapped spiral inductor
Virginia Tech Intellectual Properties, Inc.
Kuhn, William B.
Stephenson, William F.
MetadataShow full item record
An inter-wound spiral center tapped inductor includes a first and second spiral inductor trace arranged in a plane in an inter-nested pattern with a center tap connection. The inter-wound traces implement the two halves of a center-tapped inductor over a common area to provide a practical inductor element for use in balanced and differential circuits.
