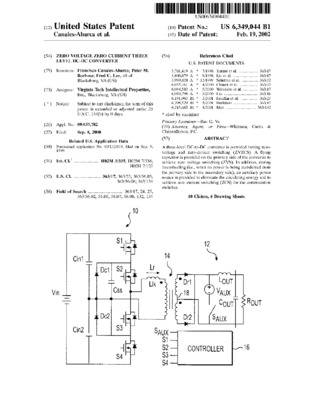

Zero voltage zero current three level DC-DC converter

Publication Date
2002-02-19Filing Date
2000-09-08Inventor
Lee, Fred C.
Canales-Abarca, Francisco
Barbosa, Peter M.
Metadata
Show full item recordAbstract
A three-level DC-to-DC converter is provided having zero-voltage and zero-current switching (ZVZCS). A flying capacitor is provided on the primary side of the converter to achieve zero voltage switching (ZVS). In addition, during freewheeling (i.e., when no power is being transferred from the primary side to the secondary side), an auxiliary power source is provided to eliminate the circulating energy and to achieve zero current switching (ZCS) for the commutation switches.
Assignee
Virginia Tech Intellectual Properties, Inc.
Patent Number
6349044
Application Number
9657782
Primary/U.S. Class
363/17
Other/U.S. Class
363/25
363/56.5
363/56.8
363/134
CPC Class
H02M1/34
H02M3/33576
H02M7/487
H02M2001/342
Y02B70/1491
Patent Type
utility
