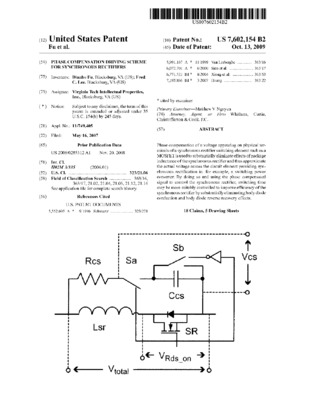

Phase compensation driving scheme for synchronous rectifiers
Lee, Fred C.
MetadataShow full item record
Phase compensation of a voltage appearing on physical terminals of a synchronous rectifier switching element such as a MOSFET is used to substantially eliminate effects of package inductance of the synchronous rectifier and thus approximate the actual voltage across the circuit element providing synchronous rectification in, for example, a switching power converter. By doing so and using the phase compensated signal to control the synchronous rectifier, switching time may be more suitably controlled to improve efficiency of the synchronous rectifier by substantially eliminating body diode conduction and body diode reverse recovery effects.
Virginia Tech Intellectual Properties, Inc.
