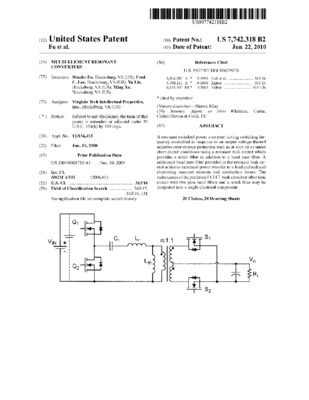

Multi-element resonant converters
Lee, Fred C.
Xu, Ming Gang
MetadataShow full item record
A resonant switched power converter having switching frequency controlled in response to an output voltage thereof achieves over-current protection such as at start-up or under short circuit conditions using a resonant tank circuit which provides a notch filter in addition to a band pass filter. A additional band pass filter provided in the resonant tank circuit achieves increased power transfer to a load and reduced circulating resonant currents and conduction losses. The inductances of the preferred LCLCL tank circuit or other tank circuit with two pass band filters and a notch filter may be integrated into a single electrical component.
Virginia Tech Intellectual Properties, Inc.
