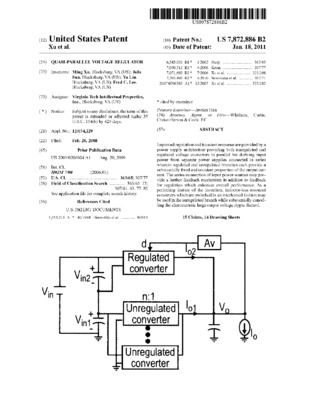

Quasi-parallel voltage regulator
Virginia Tech Intellectual Properties, Inc.
Lee, Fred C.
Xu, Ming Gang
MetadataShow full item record
Improved regulation and transient response are provided by a power supply architecture providing both unregulated and regulated voltage converters in parallel but deriving input power from separate power supplies connected in series wherein regulated and unregulated branches each provide a substantially fixed and constant proportion of the output current. The series connection of input power sources may provide a further feedback mechanism in addition to feedback for regulation which enhances overall performance. As a perfecting feature of the invention, inductor-less resonant converters which are switched in an interleaved fashion may be used in the unregulated branch while substantially cancelling the characteristic large output voltage ripple thereof.
