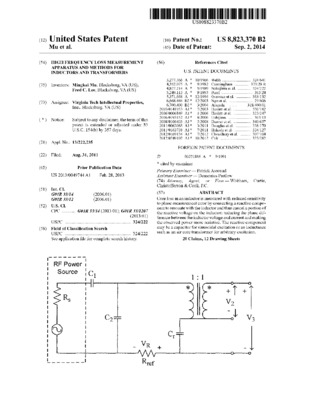

High frequency loss measurement apparatus and methods for inductors and transformers
Virginia Tech Intellectual Properties, Inc.
Lee, Fred C.
MetadataShow full item record
Core loss in an inductor is measured with reduced sensitivity to phase measurement error by connecting a reactive component to resonate with the inductor and thus cancel a portion of the reactive voltage on the inductor; reducing the phase difference between the inductor voltage and current and making the observed power more resistive. The reactive component may be a capacitor for sinusoidal excitation or an inductance such as an air core transformer for arbitrary excitation.
