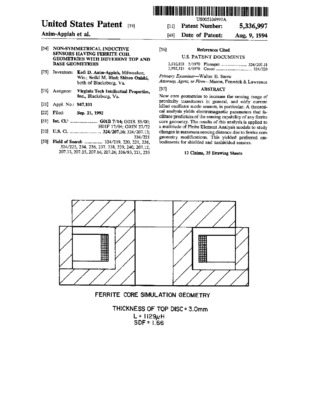

Non-symmetrical inductive sensors having ferrite coil geometries with different top and base geometries
Virginia Tech Intellectual Properties, Inc.
Anim-Appiah, Kofi D.
Riad, Sedki M.
MetadataShow full item record
New core geometries to increase the sensing range of proximity transducers in general, and eddy current killed oscillator mode sensors, in particular. A theoretical analysis yields electromagnetic parameters that facilitate prediction of the sensing capability of any ferrite core geometry. The results of this analysis is applied to a multitude of Finite Element Analysis models to study changes in maximum sensing distance due to ferrite core geometry modifications. This yielded preferred embodiments for shielded and unshielded sensors.
