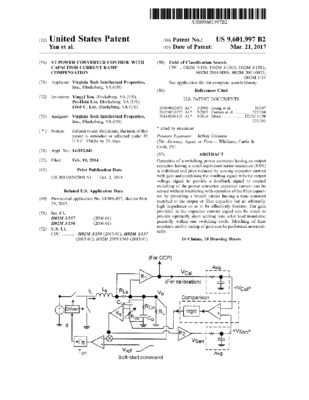

V^2 power converter control with capacitor current ramp compensation
Lee, Fred C.
MetadataShow full item record
Operation of a switching power converter having an output capacitor having a small equivalent series resistance (ESR) is stabilized and jitter reduced by sensing capacitor current with gain and combining the resulting signal with the output voltage signal to provide a feedback signal to control switching of the power converter. capacitor current can be sensed without interfering with operation of the filter capacitor by providing a branch circuit having a time constant matched to the output or filter capacitor but an arbitrarily high impedance so as to be effectively lossless. The gain provided in the capacitor current signal can be tuned to provide optimally short settling time after load transients; generally within one switching cycle. Matching of time constants and/or tuning of gain can be performed automatically.
Virginia Tech Intellectual Properties, Inc.
