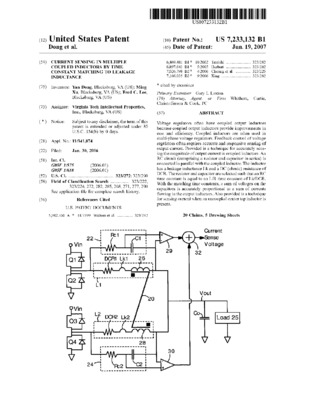

Current sensing in multiple coupled inductors by time constant matching to leakage inductance
Virginia Tech Intellectual Properties, Inc.
Lee, Fred C.
Xu, Ming Gang
MetadataShow full item record
Voltage regulators often have coupled output inductors because coupled output inductors provide improvements in cost and efficiency. Coupled inductors are often used in multi-phase voltage regulators. Feedback control of voltage regulators often requires accurate and responsive sensing of output current. Provided is a technique for accurately sensing the magnitude of output current in coupled inductors. An RC circuit (comprising a resistor and capacitor in series) is connected in parallel with the coupled inductor. The inductor has a leakage inductance Lk and a DC (ohmic) resistance of DCR. The resistor and capacitor are selected such that an RC time constant is equal to an L/R time constant of Lk/DCR. With the matching time constants, a sum of voltages on the capacitors is accurately proportional to a sum of currents flowing in the output inductors. Also provided is a technique for sensing current when an uncoupled center tap inductor is present.
