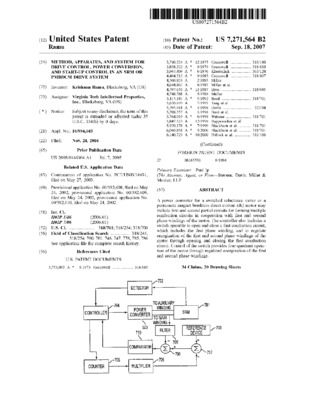

Method, apparatus, and system for drive control, power conversion, and start-up control in an SRM or PMBDCM drive system
Virginia Tech Intellectual Properties, Inc.
MetadataShow full item record
A power converter for a switched reluctance motor or a permanent magnet brushless direct current (dc) motor may include first and second partial circuits for forming multiple conduction circuits in cooperation with first and second phase windings of the motor. The controller also includes a switch operable to open and close a first conduction circuit, which includes the first phase winding, and to regulate energization of the first and second phase windings of the motor through opening and closing the first conduction circuit. Control of the switch provides four-quadrant operation of the motor through regulated energization of the first and second phase windings.
