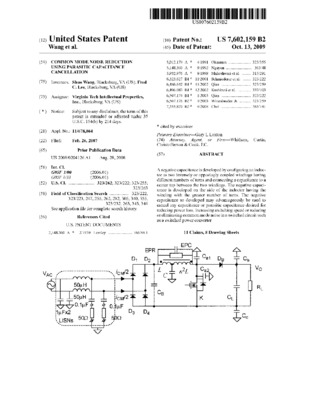

Common mode noise reduction using parasitic capacitance cancellation
A negative capacitance is developed by configuring an inductor as two inversely or opposingly coupled windings having different numbers of turns and connecting a capacitance to a center tap between the two windings. The negative capacitance is developed on the side of the inductor having the winding with the greater number of turns. The negative capacitance so developed may advantageously be used to cancel any capacitance or parasitic capacitance desired for reducing power loss, increasing switching speed or reducing or eliminating common mode noise in a switched circuit such as a switched power converter
