Measurement of air flow at vacuum conditions using small Venturis

Simple item page
dc.contributor.authorAlonso, Hectoren
dc.contributor.departmentMechanical Engineeringen
dc.date.accessioned2017-01-30T21:02:12Zen
dc.date.available2017-01-30T21:02:12Zen
dc.date.issued1980en
dc.description.abstractSmall Venturis were used to measure air flow rates through cigarette-making machines to a vacuum header. A programmable calculator was used to develop charts for each Venturi. showing flow versus differential pressure at inlet vacuums from 8 in. (203 mm) to 20 in. (508 mm) of mercury. Use of the charts eliminates the need to calculate the flow each time a test is run. An error analysis indicated that large variations in temperature do not affect the result. The accuracy of the charts is not affected as long as the tests are run at room temperature. The Venturis, ranging in size from ½ in. (13 mm) to l ½ in. (38 mm) will continue to be used to measure and monitor vacuum requirements of the machines.en
dc.description.degreeMaster of Engineeringen
dc.format.extentiv, 51, [1] leavesen
dc.format.mimetypeapplication/pdfen
dc.identifier.urihttp://hdl.handle.net/10919/74461en
dc.language.isoen_USen
dc.publisherVirginia Polytechnic Institute and State Universityen
dc.relation.isformatofOCLC# 6440431en
dc.rightsIn Copyrighten
dc.rights.urihttp://rightsstatements.org/vocab/InC/1.0/en
dc.subject.lccLD5655.V851 1980.A465en
dc.subject.lcshAir flow -- Measurementen
dc.subject.lcshVacuum technologyen
dc.titleMeasurement of air flow at vacuum conditions using small Venturisen
dc.typeMaster's projecten
dc.type.dcmitypeTexten
thesis.degree.disciplineMechanical Engineeringen
thesis.degree.grantorVirginia Polytechnic Institute and State Universityen
thesis.degree.levelmastersen
thesis.degree.nameMaster of Engineeringen

Files

Original bundle
Now showing 1 - 1 of 1

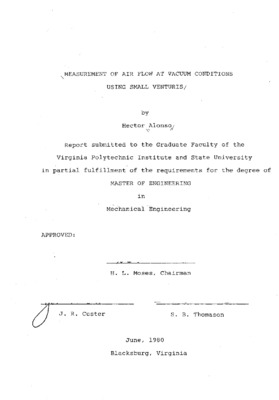

Thumbnail Image
