Split-spectrum self-referenced fiber optic sensor

Simple item page
dc.contributor.assigneeCenter for Innovative Technologyen
dc.contributor.assigneeVirginia Polytechnic Institute and State Universityen
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.departmentElectrical and Computer Engineeringen
dc.contributor.inventorMurphy, Kent A.en
dc.contributor.inventorClaus, Richard O.en
dc.contributor.inventorWang, Anboen
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:53:42Zen
dc.date.available2016-08-24T17:53:42Zen
dc.date.filed1993-08-31en
dc.date.issued1995-08-29en
dc.description.abstractA fiber optic sensor is fully compensated for light source intensity variation, fiber losses and modal power distribution by providing input to one end of an optical fiber from a relatively broad band light source containing at least two spectrally separated wavelengths. At least one of these spectrally separated wavelengths is reflected back into the optical fiber by a filter located between a second end of the optical fiber and a reflective transducer. The filter is preferably of the interference edge filter type and has a nominal cut-off wavelength within the spectral band of the light source or between the two spectrally separated wavelengths. Therefore, the paths traversed by light of the spectrally separated wavelengths will differ only by twice traversing the reflective transducer. Temperature measurement or compensation can also be provided by sensing of reflected light intensity or power at approximately the nominal cut-off frequency of the filter. Reflective transducers of both the intensity-based and interferometric types are usable with the invention.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber8114511en
dc.identifier.patentnumber5446280en
dc.identifier.urihttp://hdl.handle.net/10919/72298en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/80/462/054/0.pdfen
dc.language.isoenen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcG01D5/268en
dc.subject.cpcG01K11/32en
dc.subject.uspc250/227.23en
dc.subject.uspcother250/227.18en
dc.subject.uspcother374/E11.015en
dc.titleSplit-spectrum self-referenced fiber optic sensoren
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

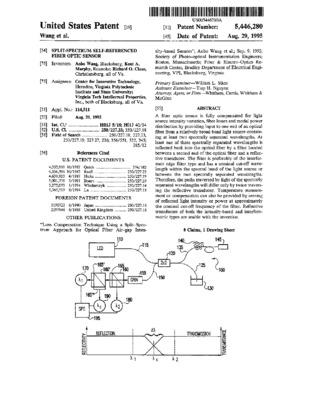

Thumbnail Image
