Multiphase voltage regulator having coupled inductors with reduced winding resistance

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorXu, Ming Gangen
dc.contributor.inventorZhou, Jinghaien
dc.contributor.inventorDong, Yanen
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:54:40Zen
dc.date.available2016-08-24T17:54:40Zen
dc.date.filed2005-10-25en
dc.date.issued2007-04-03en

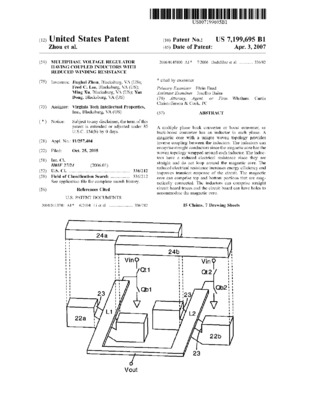

dc.description.abstractA multiple phase buck converter or boost converter, or buck-boost converter has an inductor in each phase. A magnetic core with a unique woven topology provides inverse coupling between the inductors. The inductors can comprise straight conductors since the magnetic core has the woven topology wrapped around each inductor. The inductors have a reduced electrical resistance since they are straight and do not loop around the magnetic core. The reduced electrical resistance increases energy efficiency and improves transient response of the circuit. The magnetic core can comprise top and bottom portions that are magnetically connected. The inductors can comprise straight circuit board traces and the circuit board can have holes to accommodate the magnetic core.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber11257404en
dc.identifier.patentnumber7199695en
dc.identifier.urihttp://hdl.handle.net/10919/72559en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/95/996/071/0.pdfen
dc.language.isoen_USen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcH01F37/00en
dc.subject.cpcH01F29/02en
dc.subject.cpcH02M3/1584en
dc.subject.uspc336/212en
dc.titleMultiphase voltage regulator having coupled inductors with reduced winding resistanceen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen
