A purge and trap integrated microGC platform for chemical identification in aqueous samples

dc.contributorVirginia Tech. Bradley Department of Electrical and Computer Engineering. MEMS Laben
dc.contributorVirginia Tech. Engineering Science and Mechanics Departmenten
dc.contributor.authorAkbar, Muhammaden
dc.contributor.authorNarayanan, Shreeen
dc.contributor.authorRestaino, Michaelen
dc.contributor.authorAgah, Masouden
dc.contributor.departmentElectrical and Computer Engineeringen
dc.date.accessed2015-04-16en
dc.date.accessioned2015-04-20T20:01:13Zen
dc.date.available2015-04-20T20:01:13Zen
dc.date.issued2014-05-19en

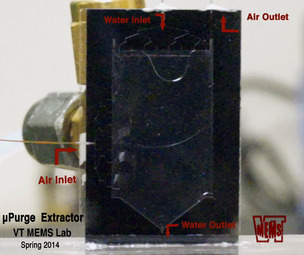

dc.description.abstractThe majority of current micro-scale gas chromatography (_GC) systems focus on air sampling to detect volatile organic compounds (VOCs). However, purging the VOCs from a water sample using microsystems is an unchartered territory. Various organic compounds used in everyday life find their way to water bodies. Some of these water organic compounds (WOCs) persist or degrade slowly, threatening not just human existence but also aquatic life. This article reports the first micro-purge extractor (_PE) chip and its integration with a micro-scale gas chromatography (_GC) system for the extraction and analysis of water organic compounds (WOCs) from aqueous samples. The 2 cm _ 3 cm _PE chip contains two inlet and outlet ports and an etched cavity sealed with a Pyrex cover. The aqueous sample is introduced from the top inlet port while a pure inert gas is supplied from the side inlet to purge WOCs from the _PE chip. The outlets are assigned for draining water from the chip and for directing purged WOCs to the micro-thermal preconcentrator (_TPC). The trapped compounds are desorbed from the _TPC by resistive heating using the on-chip heater and temperature sensor, are separated by a 2 m long, 80 _m wide, and 250 _m deep polydimethylsiloxane (OV-1) coated _GC separation column, and are identified using a micro-thermal conductivity detector (_TCD) monolithically integrated with the column. Our experiments indicate that the combined system is capable of providing rapid chromatographic separation (<1.5 min) for quaternary WOCs namely toluene, tetrachloroethylene (PCE), chlorobenzene and ethylbenzene with a minimum detection concentration of 500 parts-per-billion (ppb) in aqueous samples. The proposed method is a promising development towards the future realization of a miniaturized system for sensitive, on-site and real-time field analysis of organic contaminants in water.en
dc.description.notesSupplementary movie is included in a separate fileen
dc.description.sponsorshipNational Science Foundation (U.S.) - CAREER Award no. ECCS-0747600en
dc.description.sponsorshipNational Science Foundation - National Institute for Occupational Safety and Health (NIOSH) Grant 5R21OH010330en
dc.format.mimetypeapplication/pdfen
dc.format.mimetypevideo/x-m4ven
dc.identifier.citationAkbar, M., Narayanan, S., Restaino, M., & Agah, M. (2014). A purge and trap integrated microGC platform for chemical identification in aqueous samples. Analyst, 139(13), 3384-3392. doi: 10.1039/C4AN00254Gen
dc.identifier.doihttps://doi.org/10.1039/C4AN00254Gen
dc.identifier.issn0003-2654en
dc.identifier.urihttp://hdl.handle.net/10919/51707en
dc.identifier.urlhttp://pubs.rsc.org/en/content/articlelanding/2014/an/c4an00254gen
dc.language.isoenen
dc.publisherThe Royal Society of Chemistryen
dc.rightsCreative Commons Attribution-NonCommercial 3.0 Unporteden
dc.rights.urihttp://creativecommons.org/licenses/by-nc/3.0/en
dc.subjectMicro-scale gas chromatographyen
dc.subjectVolatile organic compoundsen
dc.subjectWater organic compoundsen
dc.subjectWater contaminationen
dc.titleA purge and trap integrated microGC platform for chemical identification in aqueous samplesen
dc.title.serialAnalysten
dc.typeArticle - Refereeden
dc.typeVideoen
dc.type.dcmitypeTexten
dc.type.dcmitypeImageen
dc.type.dcmitypeMovingImageen
