Omnidirectional wireless power transfer system

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorFu, Minfanen
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorLi, Qiangen
dc.contributor.inventorFeng, Junjieen
dc.date.accessed2021-03-23en
dc.date.accessioned2021-03-25T18:15:42Zen
dc.date.available2021-03-25T18:15:42Zen
dc.date.filed2017-01-27en
dc.date.issued2019-06-25en
dc.description.abstractIn one example, an omnidirectional wireless power transfer system includes high frequency power generator configured to generate a supply of high frequency oscillating power, a number of transmitter-side resonant tank circuits electrically coupled to the high frequency power generator, a receptacle including a number of coils arranged for omnidirectional power transfer to an electronic device placed in the receptacle, and a controller configured to activate individual ones of the transmitter-side resonant tank circuits to wirelessly transmit power to the electronic device through near-field resonant inductive coupling. In one example, the receptacle can be embodied as a bowl, and the controller can activate individual ones of the transmitter-side resonant tank circuits over time to generate an omnidirectional field distribution for wireless power transmission. In other aspects, various transmitter-side and receiver-side tank circuits for coupling independent resonance and ZVS operation are described.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber15417353en
dc.identifier.patentnumber10333353en
dc.identifier.urihttp://hdl.handle.net/10919/102825en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/53/333/103/0.pdfen
dc.language.isoenen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcH02J50/12en
dc.subject.cpcH02J7/0042en
dc.subject.cpcH02J7/025en
dc.subject.cpcH02J50/90en
dc.titleOmnidirectional wireless power transfer systemen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

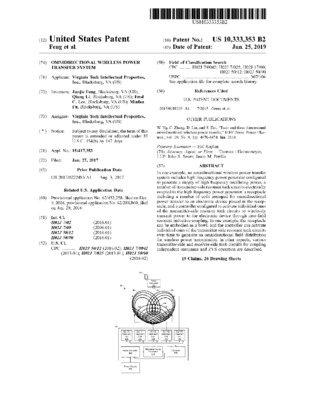

Thumbnail Image
Name:
10333353.pdf
Size:
2.25 MB
Format:
Adobe Portable Document Format
Download

Collections

Virginia Tech Patents
