Zero-current transition PWM converters

Simple item page
dc.contributor.assigneeCenter for Innovative Technologyen
dc.contributor.assigneeIntellectual Properties | Kften
dc.contributor.assigneeVirginia Techen
dc.contributor.departmentElectrical and Computer Engineeringen
dc.contributor.departmentCenter for Power Electronics Systemsen
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorHua, Guichao C.en
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:53:43Zen
dc.date.available2016-08-24T17:53:43Zen
dc.date.filed1994-06-17en
dc.date.issued1996-01-23en
dc.description.abstractA zero-current transition pulse-width modulated (ZCT-PWM) d.c.-d.c. converter allows minority-carrier semiconductor devices such as, for example, bipolar junction transistors (BJTs), insulated gate bipolar transistors (IGBTs), MOSFET controlled thyristors (MCTs), and gate turn-off thyristors (GTOs), to be used as switches for high-power, high frequency applications. The ZCT-PWM converter comprises a shunt resonant branch inserted into a conventional PWM converter circuit. The resonant branch comprises a resonant inductor (Lr), a resonant capacitor (Cr), an auxiliary switch (S1), and an auxiliary diode (D1). The resonant branch is only active during a relatively short switching time in order to create a zero-current switch condition for the main pulse-modulating switch (S) without substantially increasing voltage or current stresses.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber8262049en
dc.identifier.patentnumber5486752en
dc.identifier.urihttp://hdl.handle.net/10919/72303en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/52/867/054/0.pdfen
dc.language.isoenen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcH02M3/158en
dc.subject.cpcY02B70/1425en
dc.subject.uspc323/222en
dc.subject.uspcother323/282en
dc.subject.uspcother363/16en
dc.titleZero-current transition PWM convertersen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

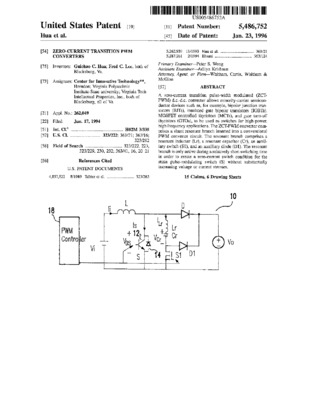

Thumbnail Image
