Resonant converters with secondary-side resonance

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorLiu, Kwang-Hwaen
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:55:41Zen
dc.date.available2016-08-24T17:55:41Zen
dc.date.filed1986-04-28en
dc.date.issued1988-11-15en
dc.description.abstractA family of quasi-resonant converters is disclosed as comprising a voltage source, a transformer having primary and secondary windings, and a switch for periodically coupling the voltage source to the primary winding, whereby a charging current appears on the secondary winding. The transformer exhibits a characteristic leakage inductance. A capacitor exhibiting a characteristic capacitance is coupled to the secondary winding to form a resonant circuit including the leakage inductance and the capacitor. The secondary winding is coupled to apply the charging current to the capacitor. A rectifying circuit couples the capacitor to a load, whereby the voltage stored in the capacitor is delivered to the load. The capacitor is directly connected to the secondary winding and to the rectifying circuit to permit positive and negative going voltages to be stored therein, whereby magnetic flux within the core of the transformer is dissipated and the transformer magnetically reset.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber6856775en
dc.identifier.patentnumber4785387en
dc.identifier.urihttp://hdl.handle.net/10919/72830en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/87/853/047/0.pdfen
dc.language.isoen_USen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcH02M3/335en
dc.subject.cpcH02M3/28en
dc.subject.cpcH02M3/33538en
dc.subject.cpcH02M3/337en
dc.subject.cpcH02M3/3372en
dc.subject.cpcY02B70/1433en
dc.subject.uspc363/21.3en
dc.subject.uspcother363/97en
dc.subject.uspcother363/131en
dc.titleResonant converters with secondary-side resonanceen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

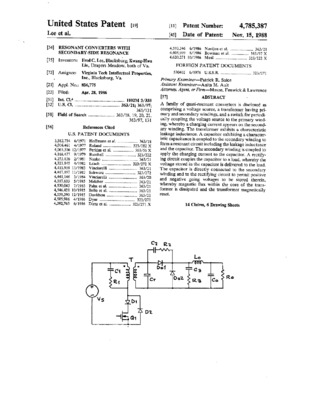

Thumbnail Image
