Highly conductive thermoplastic composites for rapid production of fuel cell bipolar plates

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorMcGrath, James E.en
dc.contributor.inventorBaird, Donald G.en
dc.contributor.inventorHuang, Jianhuaen
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:54:46Zen
dc.date.available2016-08-24T17:54:46Zen
dc.date.filed2004-02-18en
dc.date.issued2008-04-29en
dc.description.abstractA low cost method of fabricating bipolar plates for use in fuel cells utilizes a wet lay process for combining graphite particles, thermoplastic fibers, and reinforcing fibers to produce a plurality of formable sheets. The formable sheets are then molded into a bipolar plates with features impressed therein via the molding process. The bipolar plates formed by the process have conductivity in excess of 150 S/cm and have sufficient mechanical strength to be used in fuel cells. The bipolar plates can be formed as a skin/core laminate where a second polymer material is used on the skin surface which provides for enhanced conductivity, chemical resistance, and resistance to gas permeation.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber10779804en
dc.identifier.patentnumber7365121en
dc.identifier.urihttp://hdl.handle.net/10919/72584en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/21/651/073/0.pdfen
dc.language.isoen_USen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcC08K7/02en
dc.subject.uspc205/344en
dc.subject.uspcother427/115en
dc.subject.uspcother429/514en
dc.subject.uspcother429/518en
dc.subject.uspcother524/494en
dc.subject.uspcother524/495en
dc.titleHighly conductive thermoplastic composites for rapid production of fuel cell bipolar platesen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1
Thumbnail Image
Name:

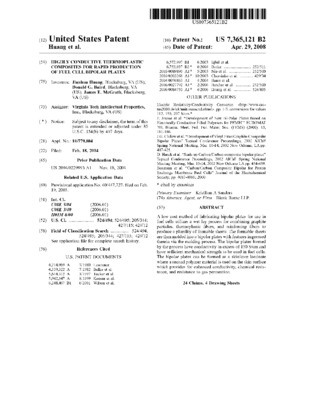

7365121.pdf
Size:
836.95 KB
Format:
Adobe Portable Document Format
Download

Collections

Virginia Tech Patents
