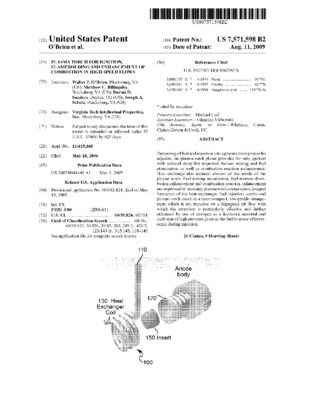

Plasma torch for ignition, flameholding and enhancement of combustion in high speed flows
| dc.contributor.assignee | Virginia Tech Intellectual Properties, Inc. | en |
| dc.contributor.inventor | O'Brien, Walter F. Jr. | en |
| dc.contributor.inventor | Schetz, Joseph A. | en |
| dc.contributor.inventor | Billingsley, Matthew C. | en |
| dc.contributor.inventor | Sanders, Darius Demetri | en |
| dc.date.accessed | 2016-08-19 | en |
| dc.date.accessioned | 2016-08-24T17:54:52Z | en |
| dc.date.available | 2016-08-24T17:54:52Z | en |
| dc.date.filed | 2006-05-18 | en |
| dc.date.issued | 2009-08-11 | en |
| dc.description.abstract | Preheating of fuel and injection into a plasma torch plume fro adjacent the plasma torch plume provides for only ignition with reduced delay but improved fuel-air mixing and fuel atomization as well as combustion reaction enhancement. Heat exchange also reduced erosion of the anode of the plasma torch. Fuel mixing atomization, fuel mixture distribution enhancement and combustion reaction enhancement are improved by unsteady plasma torch energization, integral formation of the heat exchanger, fuel injection nozzle and plasma torch anode in a more compact, low-profile arrangement which is not intrusive on a highspeed air flow with which the invention is particularly effective and further enhanced by use of nitrogen as a feedstock material and inclusion of high pressure gases in the fuel to cause effervescence during injection. | en |
| dc.format.mimetype | application/pdf | en |
| dc.identifier.applicationnumber | 11419168 | en |
| dc.identifier.patentnumber | 7571598 | en |
| dc.identifier.uri | http://hdl.handle.net/10919/72609 | en |
| dc.identifier.url | http://pimg-fpiw.uspto.gov/fdd/98/715/075/0.pdf | en |
| dc.language.iso | en_US | en |
| dc.publisher | United States Patent and Trademark Office | en |
| dc.subject.cpc | F02K7/10 | en |
| dc.subject.cpc | F02K3/10 | en |
| dc.subject.cpc | F05D2220/10 | en |
| dc.subject.cpc | F05D2220/80 | en |
| dc.subject.cpc | F23R2900/00009 | en |
| dc.subject.uspc | 60/39.826 | en |
| dc.subject.uspcother | 60/761 | en |
| dc.title | Plasma torch for ignition, flameholding and enhancement of combustion in high speed flows | en |
| dc.type | Patent | en |
| dc.type.dcmitype | Text | en |
| dc.type.patenttype | utility | en |
