Holey optical fiber with random pattern of holes and method for making same

Holey optical fiber with random pattern of holes and method for making same

dc.contributor.assignee	Virginia Tech Intellectual Properties, Inc.	en
dc.contributor.inventor	Stolen, Rogers H.	en
dc.contributor.inventor	Safaai-Jazi, Ahmad	en
dc.contributor.inventor	Pickrell, Gary R.	en
dc.contributor.inventor	Wang, Anbo	en
dc.contributor.inventor	Kominsky, Daniel	en
dc.contributor.inventor	Kim, Jeong I.	en
dc.date.accessed	2016-08-19	en
dc.date.accessioned	2016-08-24T17:55:23Z	en
dc.date.available	2016-08-24T17:55:23Z	en
dc.date.filed	2013-09-10	en
dc.date.issued	2015-03-17	en
dc.description.abstract	A random array of holes is created in an optical fiber by gas generated during fiber drawing. The gas forms bubbles which are drawn into long, microscopic holes. The gas is created by a gas generating material such as silicon nitride. Silicon nitride oxidizes to produce nitrogen oxides when heated. The gas generating material can alternatively be silicon carbide or other nitrides or carbides. The random holes can provide cladding for optical confinement when located around a fiber core. The random holes can also be present in the fiber core. The fibers can be made of silica. The present random hole fibers are particularly useful as pressure sensors since they experience a large wavelength dependant increase in optical loss when pressure or force is applied.	en
dc.format.mimetype	application/pdf	en
dc.identifier.applicationnumber	14023031	en
dc.identifier.patentnumber	8983258	en
dc.identifier.uri	http://hdl.handle.net/10919/72749	en
dc.identifier.url	http://pimg-fpiw.uspto.gov/fdd/58/832/089/0.pdf	en
dc.language.iso	en_US	en
dc.publisher	United States Patent and Trademark Office	en
dc.subject.cpc	C03B37/01297	en
dc.subject.cpc	C03B37/016	en
dc.subject.cpc	C03B37/02781	en
dc.subject.cpc	C03C11/007	en
dc.subject.cpc	C03C13/04	en
dc.subject.cpc	C03B2203/14	en
dc.subject.cpc	C03B2203/42	en
dc.subject.cpc	G01L1/243	en
dc.subject.cpc	G02B6/02385	en
dc.subject.cpc	G02B6/02295	en
dc.subject.cpc	G02B6/02333	en
dc.subject.cpc	G02B6/02338	en
dc.subject.cpc	G02B6/02357	en
dc.subject.cpc	G02B6/02366	en
dc.subject.cpc	G02B6/032	en
dc.subject.uspc	385/125	en
dc.subject.uspcother	385/123	en
dc.subject.uspcother	65/393	en
dc.subject.uspcother	65/435	en
dc.title	Holey optical fiber with random pattern of holes and method for making same	en
dc.type	Patent	en
dc.type.dcmitype	Text	en
dc.type.patenttype	utility	en

Files

Original bundle

Now showing 1 - 1 of 1

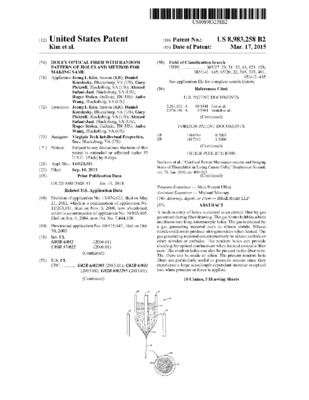

Name:: 8983258.pdf
Size:: 991.42 KB
Format:: Adobe Portable Document Format

Download

Collections

Virginia Tech Patents
