Elastic-part immersion cell for analyzing microstructures in materials

Simple item page
dc.contributor.assigneeCenter for Innovative Technologyen
dc.contributor.assigneeVirginia Polytechnic Institute and State Universityen
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorAnderson, Alan J.en
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:55:42Zen
dc.date.available2016-08-24T17:55:42Zen
dc.date.filed1993-05-10en
dc.date.issued1995-06-06en
dc.description.abstractThe elastic-port immersion cell (10) is an optical oil immersion vessel which has a flexible latex (or other) sheath (24) protruding from its sidewall. The sheath is affixed to an opening in the wall of the vessel using a collar, O-ring (26) or other connecting means. The base of the vessel is an optical glass window. A sample (20) mounted on to the end of spindle (14) is placed into the cell. The end of the spindle (14), without the sample, is inserted into the sheath and the latex together with the spindle is attached to a goniometer head of a spindle stage such that the spindle is horizontal. Immersion oil (22) that has a refractive index similar to the sample is added to the cell until the sample is totally submerged. Minute features within the sample (20) may then be observed under the microscope as the sample is rotated 360 degrees about a vertical or horizontal axis. The latex sheath prevents the oil from escaping from the cell and also provides the flexibility required to orient and rotate a sample.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber8059906en
dc.identifier.patentnumber5422718en
dc.identifier.urihttp://hdl.handle.net/10919/72835en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/18/227/054/0.pdfen
dc.language.isoen_USen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcG01N21/01en
dc.subject.cpcG02B21/33en
dc.subject.uspc356/244en
dc.subject.uspcother356/30en
dc.subject.uspcother356/31en
dc.titleElastic-part immersion cell for analyzing microstructures in materialsen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

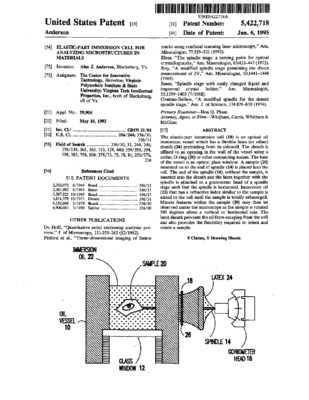

Thumbnail Image
