High input voltage, high efficiency, fast transient voltage regulator module (VRM)

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorZhou, Xunweien
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:54:23Zen
dc.date.available2016-08-24T17:54:23Zen
dc.date.filed1999-11-05en
dc.date.issued2003-07-08en

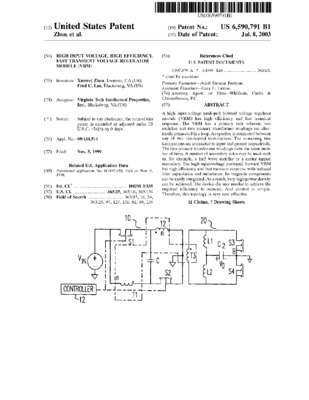

dc.description.abstractA high input-voltage push-pull forward voltage regulator module (VRM) has high efficiency and fast transient response. The VRM has a primary side wherein two switches and two primary transformer windings are alternately connected in a loop. A capacitor is connected between any of two interleaved terminations. The remaining two terminations are connected to input and ground respectively. The two primary transformer windings have the same number of turns. A number of secondary sides may be used such as, for example, a half wave rectifier or a center tapped secondary. The high input-voltage push-pull forward VRM has high efficiency and fast transient-response with reduced filter capacitance and inductance. Its magnetic components can be easily integrated. As a result, very high power density can be achieved. The device die size needed to achieve the required efficiency is reduced. And control is simple. Therefore, this topology is very cost effective.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber9434514en
dc.identifier.patentnumber6590791en
dc.identifier.urihttp://hdl.handle.net/10919/72473en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/91/907/065/0.pdfen
dc.language.isoen_USen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcH02M3/33569en
dc.subject.cpcH02M3/33576en
dc.subject.cpcH02M3/33592en
dc.subject.cpcY02B70/1475en
dc.subject.uspc363/25en
dc.subject.uspcother363/16en
dc.subject.uspcother363/134en
dc.titleHigh input voltage, high efficiency, fast transient voltage regulator module (VRM)en
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen
