dc.contributor.author	Johnson, Blake N.	en
dc.contributor.author	Mutharasan, Raj	en
dc.contributor.department	Industrial and Systems Engineering	en
dc.date.accessioned	2017-05-01T06:42:15Z	en
dc.date.available	2017-05-01T06:42:15Z	en
dc.date.issued	2016-11-23	en

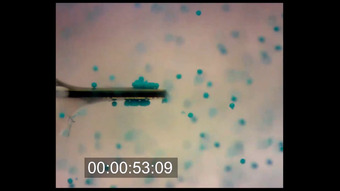

dc.description.abstract	We show here that dynamic-mode cantilever sensors enable acoustofluidic fluid mixing and trapping of suspended particles as well as the rapid manipulation and release of trapped micro-particles via mode switching in liquid. Resonant modes of piezoelectric cantilever sensors over the 0 to 8 MHz frequency range are investigated. Sensor impedance response, flow visualization studies using dye and micro-particle tracers (100 mum diameter), and finite element simulations of cantilever modal mechanics and acoustic streaming show fluid mixing and particle trapping configurations depend on the resonant mode shape. We found trapped particles could be: (1) rapidly manipulated on millimeter length scales, and (2) released from the cantilever surface after trapping by switching between low- and high-order resonant modes (less than 250 kHz and greater than 1 MHz, respectively). Such results suggest a potentially promising future for dynamic-mode cantilevers in separations, pumping and mixing applications as well as acoustofluidic-enhanced sensing applications.	en
dc.format.extent	123-131	en
dc.format.mimetype	application/pdf	en
dc.format.mimetype	video/mp4	en
dc.format.mimetype	video/x-msvideo	en
dc.identifier	c6an01743f.pdf	en
dc.identifier	c6an01743f1.pdf	en
dc.identifier	c6an01743f2.mp4	en
dc.identifier	c6an01743f3.mp4	en
dc.identifier	c6an01743f4.avi	en
dc.identifier	c6an01743f5.avi	en
dc.identifier	c6an01743f6.avi	en
dc.identifier.doi	https://doi.org/10.1039/c6an01743f	en
dc.identifier.eissn	1364-5528	en
dc.identifier.issn	0003-2654	en
dc.identifier.issue	1	en
dc.identifier.uri	http://hdl.handle.net/10919/77544	en
dc.identifier.volume	142	en
dc.language.iso	en	en
dc.publisher	Royal Society of Chemistry	en
dc.relation.ispartof	Royal Society of Chemistry Gold Open Access - 2016	en
dc.rights	Creative Commons Attribution-NonCommercial 3.0 Unported	en
dc.rights.holder	Johnson, Blake N.	en
dc.rights.holder	Mutharasan, Raj	en
dc.rights.uri	http://creativecommons.org/licenses/by-nc/3.0/	en
dc.title	Acoustofluidic particle trapping, manipulation, and release using dynamic-mode cantilever sensors	en
dc.title.serial	Analyst	en
dc.type	Article - Refereed	en
dc.type.dcmitype	Text	en
dc.type.dcmitype	Dataset	en
dc.type.dcmitype	Image	en
dc.type.dcmitype	MovingImage	en

Acoustofluidic particle trapping, manipulation, and release using dynamic-mode cantilever sensors
