Hybrid filter for high slew rate output current application

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorXu, Ming Gangen
dc.contributor.inventorRen, Yuanchengen
dc.contributor.inventorSchmit, Andrew P.en
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:54:51Zen
dc.date.available2016-08-24T17:54:51Zen
dc.date.filed2006-04-25en
dc.date.issued2009-07-14en
dc.description.abstractAn active linear regulator circuit in parallel with a filter capacitor of a switching voltage regulator injects current to a load only when the switching regulator and capacitor cannot supply adequate current to follow high frequency load transients in a manner which is compatible with adaptive voltage positioning (AVP) requirements. control of current injection and determination of the insufficiency of current from the switching regulator and capacitors is achieved by impedance matching of the linear regulator to the switching regulator. The linear regulator thus operates at relatively low current and duty cycle to limit power dissipation therein. By matching impedances and increasing the bandwidth of the switching regulator, filter capacitor requirements can be reduced to the point of being met entirely by packaging and/or on-die capacitors which may be placed close to or at the point of load to reduce parasitic inductance, as can the linear regulator.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber11380064en
dc.identifier.patentnumber7560912en
dc.identifier.urihttp://hdl.handle.net/10919/72605en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/12/609/075/0.pdfen
dc.language.isoen_USen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcH02M3/158en
dc.subject.cpcH02M2001/0045en
dc.subject.uspc323/266en
dc.subject.uspcother323/269en
dc.subject.uspcother323/272en
dc.subject.uspcother361/111en
dc.titleHybrid filter for high slew rate output current applicationen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

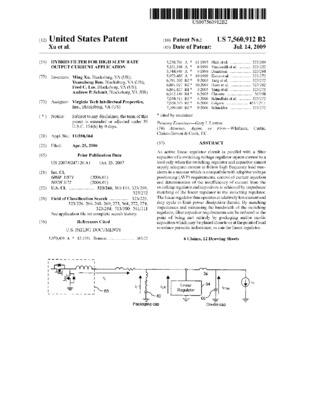

Thumbnail Image
Name:
7560912.pdf
Size:
1.2 MB
Format:
Adobe Portable Document Format
Download

Collections

Virginia Tech Patents
