External ramp autotuning for current mode control of switching converter

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.departmentElectrical and Computer Engineeringen
dc.contributor.departmentCenter for Power Electronics Systemsen
dc.contributor.inventorLiu, Pei-Hsinen
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorMattavelli, Paoloen
dc.contributor.inventorYan, Yingyien
dc.date.accessed2019-02-15en
dc.date.accessioned2019-02-26T22:23:56Zen
dc.date.available2019-02-26T22:23:56Zen
dc.date.filed2013-10-10en
dc.date.issued2017-06-13en
dc.description.abstractPeak current, valley current or average current mode controlled power converters in either digital or analog implementations obtain a stabilized feedback loop and allow high system bandwidth design by use of an external ramp generator using a slope computation equation or design parameters based on fixing the quality factor of a double pole at one-half of the switching frequency at a desired value The slope of the external ramp waveform is tuned automatically with knowledge of the slope change in the waveform of inductor current of a power converter derived by differentiating a waveform in the current feedback loop. This autotuning of the external ramp generator provides immunity of quality factor change under variations of duty cycle, component values of topological change of the power converter.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber14050435en
dc.identifier.patentnumber9678521en
dc.identifier.urihttp://hdl.handle.net/10919/87811en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/21/785/096/0.pdfen
dc.language.isoenen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcG05F1/468en
dc.subject.cpcH02M3/156en
dc.subject.cpcH02M3/157en
dc.subject.cpcH02M2001/0012en
dc.subject.cpcH02M2001/0025en
dc.titleExternal ramp autotuning for current mode control of switching converteren
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

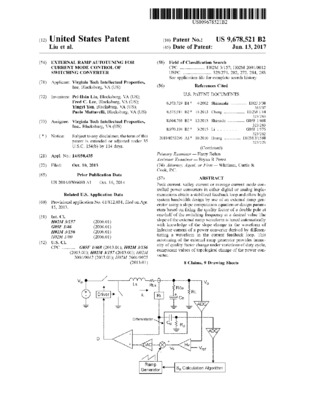

Thumbnail Image
