Holey optical fiber with random pattern of holes and method for making same

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorStolen, Rogers H.en
dc.contributor.inventorSafaai-Jazi, Ahmaden
dc.contributor.inventorPickrell, Gary R.en
dc.contributor.inventorWang, Anboen
dc.contributor.inventorKominsky, Danielen
dc.contributor.inventorKim, Jeong I.en
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:54:48Zen
dc.date.available2016-08-24T17:54:48Zen
dc.date.filed2004-06-09en
dc.date.issued2008-11-04en
dc.description.abstractA random array of holes is created in an optical fiber by gas generated during fiber drawing. The gas forms bubbles which are drawn into long, microscopic holes. The gas is created by a gas generating material such as silicon nitride. Silicon nitride oxidizes to produce nitrogen oxides when heated. The gas generating material can alternatively be silicon carbide or other nitrides or carbides. The random holes can provide cladding for optical confinement when located around a fiber core. The random holes can also be present in the fiber core. The fibers can be made of silica. The present random hole fibers are particularly useful as pressure sensors since they experience a large wavelength dependant increase in optical loss when pressure or force is applied.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber10863805en
dc.identifier.patentnumber7444838en
dc.identifier.urihttp://hdl.handle.net/10919/72593en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/38/448/074/0.pdfen
dc.language.isoen_USen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcC03B37/01297en
dc.subject.cpcC03B37/016en
dc.subject.cpcC03B37/02781en
dc.subject.cpcC03C11/007en
dc.subject.cpcC03C13/04en
dc.subject.cpcC03B2203/14en
dc.subject.cpcC03B2203/42en
dc.subject.cpcG01L1/243en
dc.subject.cpcG02B6/02385en
dc.subject.cpcG02B6/02295en
dc.subject.cpcG02B6/02333en
dc.subject.cpcG02B6/02338en
dc.subject.cpcG02B6/02357en
dc.subject.cpcG02B6/02366en
dc.subject.cpcG02B6/032en
dc.subject.uspc385/123en
dc.subject.uspcother385/125en
dc.subject.uspcother65/435en
dc.subject.uspcother65/385en
dc.subject.uspcother65/393en
dc.subject.uspcother65/399en
dc.titleHoley optical fiber with random pattern of holes and method for making sameen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

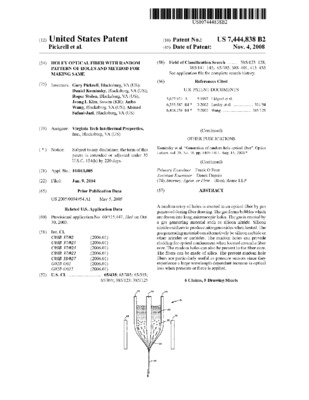

Thumbnail Image
