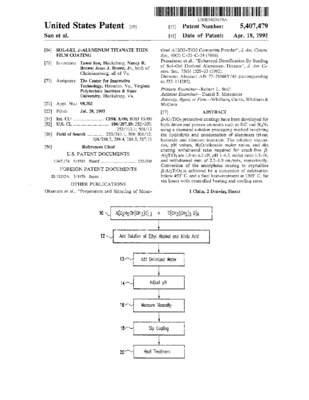

Sol-gel .beta.-aluminum titanate thin film coating
| dc.contributor.assignee | Center for Innovative Technology | en |
| dc.contributor.assignee | Virginia Polytechnic Institute and State University | en |
| dc.contributor.inventor | Brown, Nancy R. | en |
| dc.contributor.inventor | Brown, Jr., Jesse J. | en |
| dc.contributor.inventor | Sun, Tawei | en |
| dc.date.accessed | 2016-08-19 | en |
| dc.date.accessioned | 2016-08-24T17:55:42Z | en |
| dc.date.available | 2016-08-24T17:55:42Z | en |
| dc.date.filed | 1993-07-28 | en |
| dc.date.issued | 1995-04-18 | en |
| dc.description.abstract | .beta.-Al.sub.2 TiO.sub.5 protective coatings have been developed for both dense and porous ceramics such as SiC and Si.sub.3 N.sub.4 using a chemical solution processing method involving the hydrolysis and condensation of aluminum tri-sec butoxide and titanium butoxide. The solution viscosities, pH values, H.sub.2 O/alkoxide molar ratios, and dip coating withdrawal rates required for crack-free .beta.-Al.sub.2 TiO.sub.5 are 1.0 to 6.2 cP, pH 1-4.5, molar ratio 1.5-10, and withdrawal rate of 2.2-8.0 cm/min, respectively. Conversion of the amorphous coating to crystalline .beta.-Al.sub.2 TiO.sub.5 is achieved by a succession of calcination below 450.degree. C. and a final heat-treatment at 1300.degree. C. for ten hours with controlled heating and cooling rates. | en |
| dc.format.mimetype | application/pdf | en |
| dc.identifier.applicationnumber | 8098202 | en |
| dc.identifier.patentnumber | 5407479 | en |
| dc.identifier.uri | http://hdl.handle.net/10919/72832 | en |
| dc.identifier.url | http://pimg-fpiw.uspto.gov/fdd/79/074/054/0.pdf | en |
| dc.language.iso | en_US | en |
| dc.publisher | United States Patent and Trademark Office | en |
| dc.subject.cpc | C01G23/003 | en |
| dc.subject.cpc | C01P2006/22 | en |
| dc.subject.cpc | C01P2006/32 | en |
| dc.subject.cpc | C04B41/87 | en |
| dc.subject.cpc | C04B35/478 | en |
| dc.subject.cpc | C04B35/6264 | en |
| dc.subject.cpc | C04B41/009 | en |
| dc.subject.cpc | C04B41/5041 | en |
| dc.subject.cpc | C04B41/4537 | en |
| dc.subject.cpc | C04B41/4554 | en |
| dc.subject.cpc | C04B41/463 | en |
| dc.subject.cpc | C04B41/5016 | en |
| dc.subject.cpc | C04B35/565 | en |
| dc.subject.cpc | C04B35/584 | en |
| dc.subject.cpc | C04B38/00 | en |
| dc.subject.cpc | C04B2235/3206 | en |
| dc.subject.cpc | C04B2235/441 | en |
| dc.subject.cpc | C04B2235/443 | en |
| dc.subject.cpc | C04B2235/656 | en |
| dc.subject.cpc | C04B2235/6562 | en |
| dc.subject.cpc | C04B2111/00112 | en |
| dc.subject.cpc | C23C18/1216 | en |
| dc.subject.cpc | C23C18/1254 | en |
| dc.subject.cpc | C23C18/1283 | en |
| dc.subject.cpc | C23C18/1295 | en |
| dc.subject.uspc | 106/287.19 | en |
| dc.subject.uspcother | 501/12 | en |
| dc.subject.uspcother | 516/77 | en |
| dc.subject.uspcother | 516/90 | en |
| dc.subject.uspcother | 516/93 | en |
| dc.subject.uspcother | 516/98 | en |
| dc.title | Sol-gel .beta.-aluminum titanate thin film coating | en |
| dc.type | Patent | en |
| dc.type.dcmitype | Text | en |
| dc.type.patenttype | utility | en |
