Input current sensing AVP method for future VRM

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorXu, Ming Gangen
dc.contributor.inventorZhou, Jinghaien
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:54:54Zen
dc.date.available2016-08-24T17:54:54Zen
dc.date.filed2005-03-31en
dc.date.issued2009-10-20en
dc.description.abstractA voltage converter provides a desired voltage droop with load while avoiding output current sensing and active control/feedback circuits and avoiding excessive power dissipation from passive components by placing a sensing resistor in the low current, switched input circuit of the voltage converter. Therefore, the resistor conducts only when a switch controlling voltage conversion is conductive, generally at very low duty cycle and low current.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber11094433en
dc.identifier.patentnumber7605572en
dc.identifier.urihttp://hdl.handle.net/10919/72620en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/72/055/076/0.pdfen
dc.language.isoen_USen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcH02M3/1588en
dc.subject.cpcH02M2001/0009en
dc.subject.cpcY02B70/1466en
dc.subject.uspc323/274en
dc.subject.uspcother323/276en
dc.titleInput current sensing AVP method for future VRMen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

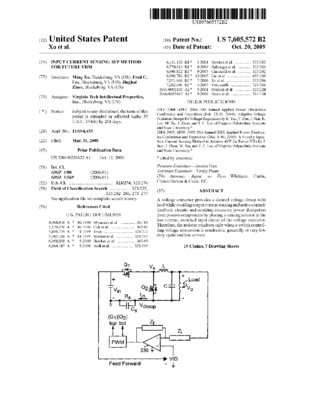

Thumbnail Image
Name:
7605572.pdf
Size:
837.35 KB
Format:
Adobe Portable Document Format
Download

Collections

Virginia Tech Patents
