Quasi-resonant DC-DC converters with reduced body diode loss

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorXu, Ming Gangen
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:54:31Zen
dc.date.available2016-08-24T17:54:31Zen
dc.date.filed2003-06-25en
dc.date.issued2006-01-24en
dc.description.abstractBuck converters having a resonant inductor Lr, resonant capacitor Cr, and synchronous switch Q3 that together provide reduced switching loss and soft switching. In operation, the resonant inductor Lr is charged during a time period A. Then, Lr is freewheeling and provides current to an output inductor Lo. Then, Q3 is turned OFF, and energy from the resonant inductor Lr charges the resonant capacitor Cr. Finally, energy from the resonant capacitor Cr is provided to the output inductor and load. The output power can be adjusted by phase control of the operation of switch Q3. In alternative embodiments, the circuit has a pair of coupled inductors L1 L2 or an isolation transformer 40. The coupled inductors have a polarity selected so that the output voltage is reduced, thereby allowing top switch Q1 to have a greater duty cycle. These circuits feature no body diode loss in the switch Q3.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber10603097en
dc.identifier.patentnumber6989997en
dc.identifier.urihttp://hdl.handle.net/10919/72516en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/97/899/069/0.pdfen
dc.language.isoen_USen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcH02M3/158en
dc.subject.cpcH02M3/33576en
dc.subject.cpcY02B70/1425en
dc.subject.cpcY02B70/1433en
dc.subject.uspc323/271en
dc.subject.uspcother363/16en
dc.subject.uspcother363/18en
dc.titleQuasi-resonant DC-DC converters with reduced body diode lossen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

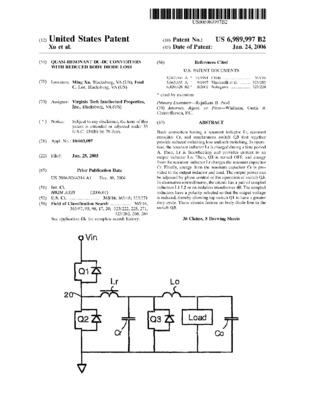

Thumbnail Image
Name:
6989997.pdf
Size:
967.5 KB
Format:
Adobe Portable Document Format
Download

Collections

Virginia Tech Patents
