Digital power supply control

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorLi, Jian H.en
dc.contributor.inventorXu, Ming Gangen
dc.contributor.inventorQiu, Yangen
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:54:56Zen
dc.date.available2016-08-24T17:54:56Zen
dc.date.filed2007-05-30en
dc.date.issued2010-04-27en
dc.description.abstractA switched voltage regulator provides improved regulation at a lower clock rate/sampling frequency (e.g. several orders of magnitude lower than would be required for comparable regulation) while using a low resolution digital pulse width modulator such that limit cycle oscillations occur (and thus of low cost and complexity and small size) by limiting the amplitude of limit cycle oscillations which therefore need not be avoided by more complex arrangements which are not commercially feasible. Limiting of amplitude of limit cycle oscillations is achieved by adding essentially a digitized ripple voltage signal corresponding to the difference between the output of the voltage regulator and an average output of the voltage regulator as an input to the digital pulse width modulator. Performance of this arrangement may be enhanced by adding a ramp signal to the digitized ripple voltage signal and even further enhanced by limiting the ramp signal to a range which corresponds to steady state operation but not transients.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber11755331en
dc.identifier.patentnumber7705577en
dc.identifier.urihttp://hdl.handle.net/10919/72631en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/77/055/077/0.pdfen
dc.language.isoen_USen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcH02M3/157en
dc.subject.uspc323/283en
dc.titleDigital power supply controlen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

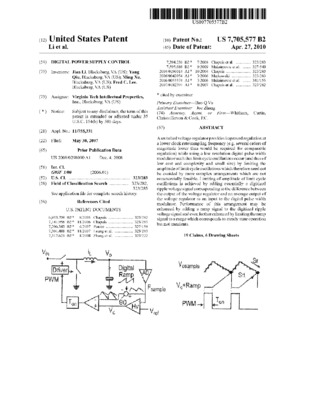

Thumbnail Image
Name:
7705577.pdf
Size:
748.56 KB
Format:
Adobe Portable Document Format
Download

Collections

Virginia Tech Patents
