Interleaved converters with integrated magnetics

dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorFei, Chaoen
dc.contributor.inventorLi, Binen
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorLi, Qiangen
dc.contributor.inventorWu, Hongfeien
dc.date.accessed2021-03-23en
dc.date.accessioned2021-03-25T18:15:40Zen
dc.date.available2021-03-25T18:15:40Zen
dc.date.filed2019-01-21en
dc.date.issued2020-09-29en
dc.description.abstractThree-phase interleaved LLC and CLLC resonant converters, with integrated magnetics, are described. In various examples, the primary sides of the phases in the converters rely upon a half-bridge configuration and include resonant networks coupled to each other in delta-connected or common Y-node configurations. The secondary sides of the phases can rely upon a full-bridge configurations and are coupled in parallel. In one example, the transformers of the phases in the converters are integrated into one magnetic core. By changing the interleaving structure between the primary and secondary windings in the transformers, resonant inductors of the phases can also be integrated into the same magnetic core. A multi-layer PCB can be used as the windings for the integrated magnetics.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber16252990en
dc.identifier.patentnumber10790081en
dc.identifier.urihttp://hdl.handle.net/10919/102815en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/81/900/107/0.pdfen
dc.languageenen
dc.publisherUnited States Patent and Trademark Officeen
dc.titleInterleaved converters with integrated magneticsen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1
Loading...

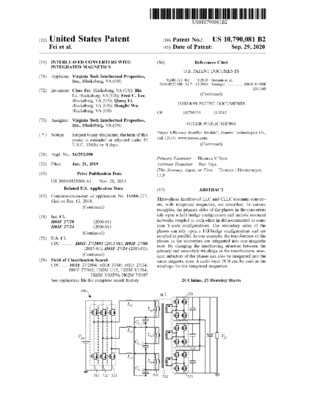

Thumbnail Image
