Accelerated commutation for passive clamp isolated boost converters
| dc.contributor.assignee | Virginia Tech Intellectual Properties, Inc. | en |
| dc.contributor.inventor | Lee, Fred C. | en |
| dc.contributor.inventor | Lai, Jih-Sheng | en |
| dc.contributor.inventor | Zhu, Lizhi | en |
| dc.date.accessed | 2016-08-19 | en |
| dc.date.accessioned | 2016-08-24T17:54:29Z | en |
| dc.date.available | 2016-08-24T17:54:29Z | en |
| dc.date.filed | 2002-04-08 | en |
| dc.date.issued | 2005-04-05 | en |
| dc.description.abstract | An efficient and cost effective bidirectional DC/DC converter reduces switch voltage stress via accelerated commutation allowing use of a low-cost passive clamp circuit in boost mode. The converter includes a primary circuit, transformer and secondary circuit. The primary circuit takes the form of a “full bridge converter,” a “push-pull converter,” or an “L-type converter.”. The primary circuit may include a dissipator such as a snubber circuit or small buck converter. A secondary side of the transformer is momentarily shorted by the secondary circuit by, for example, turning on at least two switches in the secondary circuit simultaneously for a minimal calibratable period when a pair of primary circuit controllers turn off to protect the primary circuit switches from voltage spikes during switching conditions. | en |
| dc.format.mimetype | application/pdf | en |
| dc.identifier.applicationnumber | 10118659 | en |
| dc.identifier.patentnumber | 6876556 | en |
| dc.identifier.uri | http://hdl.handle.net/10919/72508 | en |
| dc.identifier.url | http://pimg-fpiw.uspto.gov/fdd/56/765/068/0.pdf | en |
| dc.language.iso | en_US | en |
| dc.publisher | United States Patent and Trademark Office | en |
| dc.subject.cpc | H02M1/34 | en |
| dc.subject.cpc | H02M3/33584 | en |
| dc.subject.cpc | H02M3/33592 | en |
| dc.subject.cpc | H02M3/337 | en |
| dc.subject.cpc | H02M2001/342 | en |
| dc.subject.cpc | H02M2001/348 | en |
| dc.subject.cpc | Y02B70/1475 | en |
| dc.subject.cpc | Y02B70/1491 | en |
| dc.subject.uspc | 363/17 | en |
| dc.subject.uspcother | 363/56.2 | en |
| dc.subject.uspcother | 363/56.5 | en |
| dc.title | Accelerated commutation for passive clamp isolated boost converters | en |
| dc.type | Patent | en |
| dc.type.dcmitype | Text | en |
| dc.type.patenttype | utility | en |

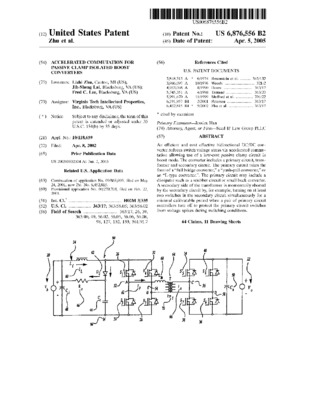

Files
