Soft switched three-phase boost rectifiers and voltage source inverters

Simple item page
dc.contributor.assigneeCenter for Innovative Technologyen
dc.contributor.assigneeVirginia Polytechnic Institute and State Universityen
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorJiang, Yiminen
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:53:52Zen
dc.date.available2016-08-24T17:53:52Zen
dc.date.filed1995-01-23en
dc.date.issued1997-05-27en
dc.description.abstractA boost rectifier is provided with an ultra high speed diode in its direct current rail to reduce diode reverse recovery loss with or without implementing a soft switching technique. Full zero-voltage-transition (ZVT) as well as zero-current-transition (ZCT) may also be achieved by adding a simple auxiliary network across the DC rail which operates only during the short turn-on transients of the bridge switches. Similarly, a simple, inexpensive auxiliary circuit can be added to the DC rail of a conventional voltage source inverter shown to implement both ZVT and ZCT.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber8376365en
dc.identifier.patentnumber5633793en
dc.identifier.urihttp://hdl.handle.net/10919/72342en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/93/337/056/0.pdfen
dc.language.isoen_USen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcH02M7/4826en
dc.subject.cpcH02M7/062en
dc.subject.cpcH02M7/219en
dc.subject.cpcH02M7/5387en
dc.subject.cpcY02B70/1441en
dc.subject.uspc363/127en
dc.subject.uspcother363/132en
dc.titleSoft switched three-phase boost rectifiers and voltage source invertersen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

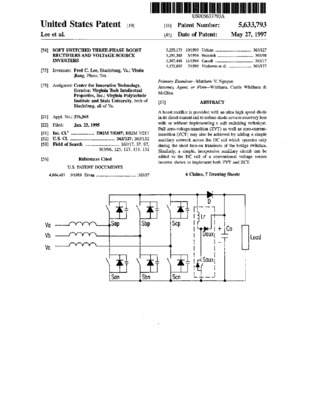

Thumbnail Image
