Method for reducing or eliminating conducted common mode noise in a transformer

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.departmentElectrical and Computer Engineeringen
dc.contributor.departmentCenter for Power Electronics Systemsen
dc.contributor.inventorLi, Qiangen
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorHuang, Daochengen
dc.contributor.inventorYang, Yuchenen
dc.date.accessed2019-02-15en
dc.date.accessioned2019-02-26T22:23:53Zen
dc.date.available2019-02-26T22:23:53Zen
dc.date.filed2013-05-07en
dc.date.issued2017-03-07en
dc.description.abstractAt least one shield member interposed between primary and secondary windings of a transformer and connected to the primary and/or secondary windings forms a distributed parasitic capacitance between the shield member and either the winding to which it is not connected or another shield member connected to that winding. Connections are made to the respective transformer windings such that the voltage distributions thus developed cause complementary common mode noise to be conducted in opposite directions in respective portions of the parasitic capacitance such that net common mode current can be made arbitrarily small without requiring that both sides of the distributed parasitic capacitance have complementary or equal voltage distributions. Such complementary common mode currents can be achieved by dividing opposing shield members or developing a voltage distribution in a single shield member in accordance with Faraday's Law.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber13888743en
dc.identifier.patentnumber9589718en
dc.identifier.urihttp://hdl.handle.net/10919/87799en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/18/897/095/0.pdfen
dc.language.isoenen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcH01F27/362en
dc.subject.cpcH01F27/2804en
dc.subject.cpcY10T29/4902en
dc.titleMethod for reducing or eliminating conducted common mode noise in a transformeren
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

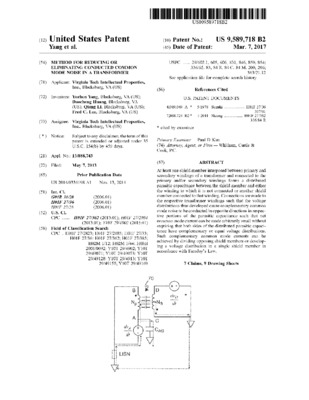

Thumbnail Image
