Coupled inductor for interleaved multi-phase three-level DC-DC converters

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorLu, Sizhaoen
dc.contributor.inventorJiao, Yangen
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorMu, Mingkaien
dc.date.accessed2021-03-23en
dc.date.accessioned2021-03-25T18:15:41Zen
dc.date.available2021-03-25T18:15:41Zen
dc.date.filed2015-12-03en
dc.date.issued2019-08-27en
dc.description.abstractOutput current ripple is reduced in a three-level DC-DC power converter by connecting a plurality of phase legs in parallel between a source of input power and an output of the power converter and conducting power from the source of input power to the power converter output in an interleaved manner. The large current that results from such interleaved operation is reduced to acceptable levels, potentially less than the output current ripple of the power converter by providing inversely coupled inductors having a mutual inductance preferably greater than the inductor of the power converter in respective phase legs and in series in the circulating current path to avoid any need to increase the power converter inductance due to the circulating current. The inductor and inversely coupled inductors are preferably integrated into a single magnetic element of compact design.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber14957743en
dc.identifier.patentnumber10396684en
dc.identifier.urihttp://hdl.handle.net/10919/102822en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/84/966/103/0.pdfen
dc.languageenen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcH02M7/493en
dc.subject.cpcH02M7/487en
dc.subject.cpcH02M2001/123en
dc.titleCoupled inductor for interleaved multi-phase three-level DC-DC convertersen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

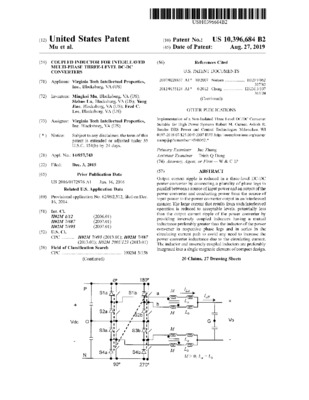

Thumbnail Image
Name:
10396684.pdf
Size:
1.55 MB
Format:
Adobe Portable Document Format
Download

Collections

Virginia Tech Patents
