Multi-phase EMI noise separator

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorWang, Shuoen
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:55:16Zen
dc.date.available2016-08-24T17:55:16Zen
dc.date.filed2011-03-25en
dc.date.issued2014-04-15en
dc.description.abstractCommon mode (CM) and differential mode (DM) components of multi-phase conducted electromagnetic interference (EMI) noise emanating from electronic circuits such as power converters/inverters are separated by respective coupled inductors connected to each phase of three or more phases and which are coupled to each other differently for CM and DM noise of the respective phases. The inductors of the DM separation unit are coupled such that a substantially ideal zero impedance is presented to DM noise while a high impedance is presented to CM noise. Conversely, the inductors of the CM separation unit are coupled such that a substantially ideal zero impedance is presented to CM noise while a high impedance is presented to DM noise.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber13071647en
dc.identifier.patentnumber8698579en
dc.identifier.urihttp://hdl.handle.net/10919/72717en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/79/985/086/0.pdfen
dc.language.isoen_USen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcG01R31/001en
dc.subject.cpcH03H7/427en
dc.subject.cpcH03H7/09en
dc.subject.cpcH03H7/1725en
dc.subject.cpcH03H2001/005en
dc.subject.uspc333/181en
dc.subject.uspcother333/12en
dc.titleMulti-phase EMI noise separatoren
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

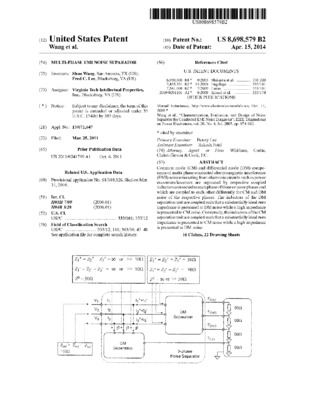

Thumbnail Image
Name:
8698579.pdf
Size:
2.72 MB
Format:
Adobe Portable Document Format
Download

Collections

Virginia Tech Patents
