Avoiding internal switching loss in soft switching cascode structure device

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.departmentElectrical and Computer Engineeringen
dc.contributor.departmentCenter for Power Electronics Systemsen
dc.contributor.inventorLi, Qiangen
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorHuang, Xiuchengen
dc.contributor.inventorDu, Weijingen
dc.date.accessed2019-02-15en
dc.date.accessioned2019-02-26T22:23:57Zen
dc.date.available2019-02-26T22:23:57Zen
dc.date.filed2014-08-28en
dc.date.issued2017-08-15en
dc.description.abstractIn a cascode switching device, avalanche breakdown of a control transistor and loss of soft switching or zero voltage switching in a high voltage normally-on depletion mode transistor having a negative switching threshold voltage and the corresponding losses are avoided by providing additional capacitance in parallel with a parallel connection of drain-source parasitic capacitance of the control transistor and gate-source parasitic capacitance of the high voltage, normally-on transistor to form a capacitive voltage divider with the drain-source parasitic capacitance of the high voltage, normally-on transistor such that the avalanche breakdown voltage of the control transistor cannot be reached. The increased capacitance also assures that the drain source parasitic capacitance of the high voltage, normally-on transistor is fully discharged before internal turn-on can occur.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber14471404en
dc.identifier.patentnumber9735238en
dc.identifier.urihttp://hdl.handle.net/10919/87817en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/38/352/097/0.pdfen
dc.language.isoenen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcH01L29/20en
dc.subject.cpcH01L29/1608en
dc.subject.cpcH01L29/2003en
dc.subject.cpcH01L29/7828en
dc.subject.cpcH02M2001/0058en
dc.subject.cpcH03K17/102en
dc.subject.cpcH03K17/567en
dc.subject.cpcH03K2017/6875en
dc.subject.cpcH03K2217/0036en
dc.subject.cpcY02B70/1491en
dc.titleAvoiding internal switching loss in soft switching cascode structure deviceen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

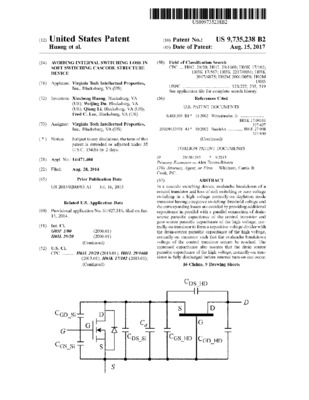

Thumbnail Image
