V^2 power converter control with capacitor current ramp compensation

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.departmentElectrical and Computer Engineeringen
dc.contributor.departmentCenter for Power Electronics Systemsen
dc.contributor.inventorLiu, Pei-Hsinen
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorYan, Yingyien
dc.date.accessed2019-02-15en
dc.date.accessioned2019-02-26T22:23:54Zen
dc.date.available2019-02-26T22:23:54Zen
dc.date.filed2014-02-19en
dc.date.issued2017-03-21en
dc.description.abstractOperation of a switching power converter having an output capacitor having a small equivalent series resistance (ESR) is stabilized and jitter reduced by sensing capacitor current with gain and combining the resulting signal with the output voltage signal to provide a feedback signal to control switching of the power converter. capacitor current can be sensed without interfering with operation of the filter capacitor by providing a branch circuit having a time constant matched to the output or filter capacitor but an arbitrarily high impedance so as to be effectively lossless. The gain provided in the capacitor current signal can be tuned to provide optimally short settling time after load transients; generally within one switching cycle. Matching of time constants and/or tuning of gain can be performed automatically.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber14183841en
dc.identifier.patentnumber9601997en
dc.identifier.urihttp://hdl.handle.net/10919/87802en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/97/019/096/0.pdfen
dc.language.isoenen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcH02M3/156en
dc.subject.cpcH02M3/157en
dc.subject.cpcH02M2003/1566en
dc.titleV^2 power converter control with capacitor current ramp compensationen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

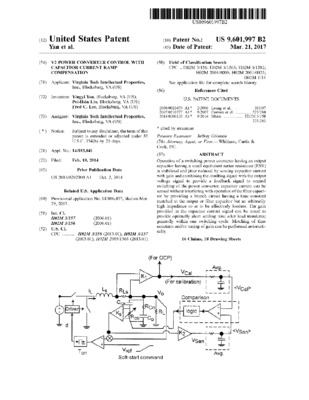

Thumbnail Image
