Start-up circuit and control for high power isolated boost DC/DC converters

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorZhu, Lizhien
dc.contributor.inventorLai, Jih-Shengen
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:54:23Zen
dc.date.available2016-08-24T17:54:23Zen
dc.date.filed2001-05-24en
dc.date.issued2003-07-01en
dc.description.abstractThe invention is a scheme for high power isolated full-bridge boost DC/DC converters to minimize the effect of in-rush current during start-up. A single pulse width modulation controller (PWM) is possible for the present invention for not only start-up but also normal boost modes. A primary circuit can have a clamping switch or at least two choke diodes. The choke diode can include “push-pull” and “L”-type configurations. A resistor can be used to dissipate energy clamped from the voltage spike. A startup circuit can be used to eliminate the in-rush current experienced during start-up. The proposed start-up schemes have been experimentally verified using a 1.6 kW, 12V/288 V prototype. Since the present invention eliminates the need to match characteristics of multiple controllers, it significantly reduces the cost associated with implementing this type of technology.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber9866304en
dc.identifier.patentnumber6587356en
dc.identifier.urihttp://hdl.handle.net/10919/72472en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/56/873/065/0.pdfen
dc.language.isoen_USen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcH02M1/34en
dc.subject.cpcH02M3/3376en
dc.subject.cpcH02M2001/342en
dc.subject.cpcY02B70/1491en
dc.subject.cpcY10S323/908en
dc.subject.uspc323/908en
dc.subject.uspcother363/17en
dc.subject.uspcother363/49en
dc.subject.uspcother363/56.2en
dc.subject.uspcother363/56.5en
dc.titleStart-up circuit and control for high power isolated boost DC/DC convertersen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

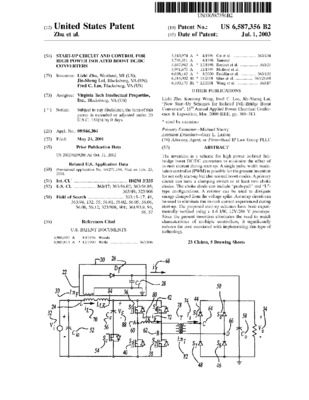

Thumbnail Image
