Current sensing and current sharing

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorZhou, Xunweien
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:54:17Zen
dc.date.available2016-08-24T17:54:17Zen
dc.date.filed2000-12-13en
dc.date.issued2002-07-02en
dc.description.abstractAn interleaved small-inductance buck voltage regulator (VRM) converter with the novel current sensing and sharing technology significantly improves transient response with size minimization. Specifically, two or more buck VRM modules are interleaved or connected in parallel. The resultant current waveform has a fast transient response but with reduced ripples since the ripples in the individual modules mathematically cancel one another. The result is a smooth output current waveform having spikes within an acceptable tolerance limits when for example the load increases due to a connected processor changing from “sleep” to “active” mode. A novel current sensing and sharing scheme between the individual VRMs is implemented using an RC network in each module to detect inductor current for that module. Good current sharing result can be easily achieved. Unlike peak current mode control and average current mode control, with this technology, the converter still has low output impedance and fast transient response. As a result, the VRM can be very cost-effective, high power density, high efficiency and have good transient performance.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber9734697en
dc.identifier.patentnumber6414469en
dc.identifier.urihttp://hdl.handle.net/10919/72450en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/69/144/064/0.pdfen
dc.language.isoen_USen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcG05F1/62en
dc.subject.uspc323/272en
dc.subject.uspcother323/282en
dc.titleCurrent sensing and current sharingen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

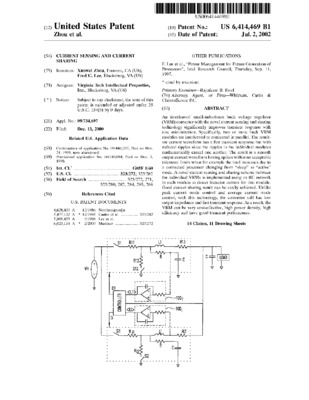

Thumbnail Image
Name:
6414469.pdf
Size:
812.72 KB
Format:
Adobe Portable Document Format
Download

Collections

Virginia Tech Patents
