Asymmetrical interleaving strategy for multi-channel power converters

Simple item page
dc.contributor.assigneeVirginia Tech Intellectual Properties, Inc.en
dc.contributor.inventorLee, Fred C.en
dc.contributor.inventorWang, Chung-Hsing Hsuanen
dc.contributor.inventorXu, Ming Gangen
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:54:58Zen
dc.date.available2016-08-24T17:54:58Zen
dc.date.filed2007-08-06en
dc.date.issued2010-06-29en
dc.description.abstractIn a power converter having m=two or more channels of power factor correction (PFC) circuits connected in parallel and an electromagnetic interference (EMI) filter connected in series therewith, phase shifts in switching between the respective PFC channels can allow increase of EMI filter corner frequency allowing reduction of size and cost of the EMI filter at some switching frequencies. Asymmetrical phase shifts (other than 360°/m) such as 360°/2m and other phase shifts and variations in m allow increase of EMI filter corner frequency at switching frequencies where symmetrical, 360°/m phase shifts provide no benefit to EMI filter design by providing cancellation or partial cancellation of different harmonics of the switching noise; which cancellation may be arranged to be complementary to the EMI filter function at more than one peak of the noise spectrum. (Such asymmetrical phase shifts do not significantly increase ripple and consequent switching noise). Alteration of m and corresponding alteration of phase shift may be performed adaptively for purposes of improving efficiency at light loads and the like.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber11834281en
dc.identifier.patentnumber7746675en
dc.identifier.urihttp://hdl.handle.net/10919/72639en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/75/466/077/0.pdfen
dc.language.isoen_USen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcH02M1/12en
dc.subject.cpcH02M1/42en
dc.subject.cpcH02M3/1584en
dc.subject.cpcH02M2003/1586en
dc.subject.cpcY02B70/12en
dc.subject.uspc363/44en
dc.subject.uspcother363/45en
dc.subject.uspcother363/48en
dc.subject.uspcother363/52en
dc.subject.uspcother363/69en
dc.subject.uspcother363/84en
dc.titleAsymmetrical interleaving strategy for multi-channel power convertersen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

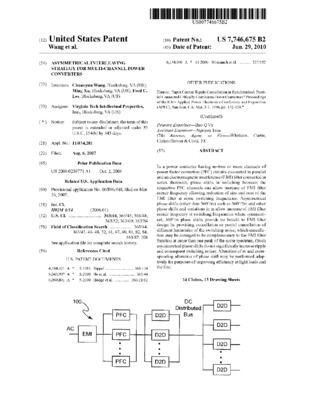

Thumbnail Image
