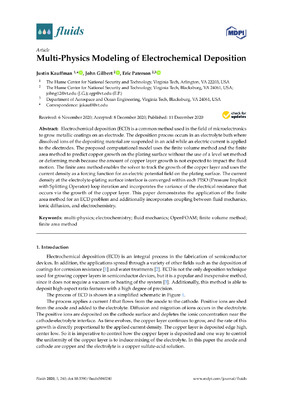

Multi-Physics Modeling of Electrochemical Deposition
| dc.contributor.author | Kauffman, Justin | en |
| dc.contributor.author | Gilbert, John | en |
| dc.contributor.author | Paterson, Eric G. | en |
| dc.contributor.department | Hume Center for National Security and Technology | en |
| dc.contributor.department | Aerospace and Ocean Engineering | en |
| dc.date.accessioned | 2021-01-04T12:50:49Z | en |
| dc.date.available | 2021-01-04T12:50:49Z | en |
| dc.date.issued | 2020-12-11 | en |
| dc.date.updated | 2020-12-24T15:28:49Z | en |
| dc.description.abstract | Electrochemical deposition (ECD) is a common method used in the field of microelectronics to grow metallic coatings on an electrode. The deposition process occurs in an electrolyte bath where dissolved ions of the depositing material are suspended in an acid while an electric current is applied to the electrodes. The proposed computational model uses the finite volume method and the finite area method to predict copper growth on the plating surface without the use of a level set method or deforming mesh because the amount of copper layer growth is not expected to impact the fluid motion. The finite area method enables the solver to track the growth of the copper layer and uses the current density as a forcing function for an electric potential field on the plating surface. The current density at the electrolyte-plating surface interface is converged within each PISO (Pressure Implicit with Splitting Operator) loop iteration and incorporates the variance of the electrical resistance that occurs via the growth of the copper layer. This paper demonstrates the application of the finite area method for an ECD problem and additionally incorporates coupling between fluid mechanics, ionic diffusion, and electrochemistry. | en |
| dc.description.version | Published version | en |
| dc.format.mimetype | application/pdf | en |
| dc.identifier.citation | Kauffman, J.; Gilbert, J.; Paterson, E. Multi-Physics Modeling of Electrochemical Deposition. Fluids 2020, 5, 240. | en |
| dc.identifier.doi | https://doi.org/10.3390/fluids5040240 | en |
| dc.identifier.uri | http://hdl.handle.net/10919/101718 | en |
| dc.language.iso | en | en |
| dc.publisher | MDPI | en |
| dc.rights | Creative Commons Attribution 4.0 International | en |
| dc.rights.uri | http://creativecommons.org/licenses/by/4.0/ | en |
| dc.subject | multi-physics | en |
| dc.subject | electrochemistry | en |
| dc.subject | fluid mechanics | en |
| dc.subject | OpenFOAM | en |
| dc.subject | finite volume method | en |
| dc.subject | finite area method | en |
| dc.title | Multi-Physics Modeling of Electrochemical Deposition | en |
| dc.title.serial | Fluids | en |
| dc.type | Article - Refereed | en |
| dc.type.dcmitype | Text | en |
