Single-shot volumetric laser induced fluorescence (VLIF) measurements in turbulent flows seeded with iodine

dc.contributorVirginia Techen
dc.contributor.authorWu, Yuen
dc.contributor.authorXu, Wejiangen
dc.contributor.authorLei, Qingchunen
dc.contributor.authorMa, Linen
dc.contributor.departmentAerospace and Ocean Engineeringen
dc.date.accessioned2017-03-10T16:32:44Zen
dc.date.available2017-03-10T16:32:44Zen
dc.date.issued2015-12-17en
dc.description.abstractThis work reports the experimental demonstration of single-shot visualization of turbulent flows in all three spatial dimensions (3D) based on volumetric laser induced fluorescence (VLIF). The measurements were performed based on the LIF signal of iodine (I₂) vapor seeded in the flow. In contrast to established planar LIF (PLIF) technique, the VLIF technique excited the seeded I₂ vapor volumetrically by a thick laser slab. The volumetric LIF signals emitted were then simultaneously collected by a total of five cameras from five different orientations, based on which a 3D tomographic reconstruction was performed to obtain the 3D distribution of the I₂ vapor in the target flow. Single-shot measurements (with a measurement duration of a few ns) were demonstrated in a 50 mm × 50 mm × 50 mm volume with a nominal spatial resolution of 0.42 mm and an actual resolution of ~0.71 mm in all three dimensions (corresponding to a total of 120 × 120 × 120 voxels).en
dc.format.mimetypeapplication/pdfen
dc.identifier.doihttps://doi.org/10.1364/OE.23.033408en
dc.identifier.issue26en
dc.identifier.urihttp://hdl.handle.net/10919/76108en
dc.identifier.volume23en
dc.language.isoen_USen
dc.publisherOSAen
dc.rightsIn Copyrighten
dc.rights.urihttp://rightsstatements.org/vocab/InC/1.0/en
dc.subjectFluorescence, laser-induceden
dc.subjectTomographyen
dc.titleSingle-shot volumetric laser induced fluorescence (VLIF) measurements in turbulent flows seeded with iodineen
dc.title.serialOptics Expressen
dc.typeArticle - Refereeden
dc.type.dcmitypeTexten

Files

Original bundle
Now showing 1 - 1 of 1
Loading...
Thumbnail Image
Name:

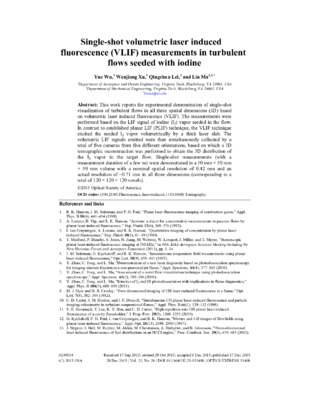

MaSingleShot2015.pdf
Size:
2.33 MB
Format:
Adobe Portable Document Format
Description:
