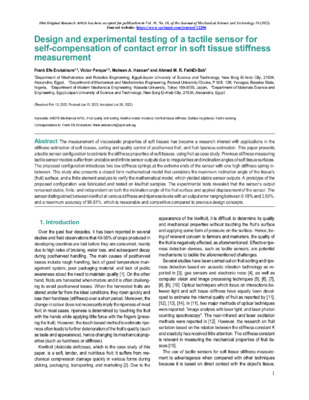

Design and experimental testing of a tactile sensor for self-compensation of contact error in soft tissue stiffness measurement
dc.contributor.author | Erukainure, Frank Efe | en |
dc.contributor.author | Parque, Victor | en |
dc.contributor.author | Hassan, Mohsen A. | en |
dc.contributor.author | FathEl-Bab, Ahmed M. R. | en |
dc.date.accessioned | 2023-11-27T16:01:00Z | en |
dc.date.available | 2023-11-27T16:01:00Z | en |
dc.date.issued | 2022-10 | en |
dc.date.updated | 2023-11-27T11:47:28Z | en |
dc.description.abstract | The measurement of viscoelastic properties of soft tissues has become a research interest with applications in the stiffness estimation of soft tissues, sorting and quality control of postharvest fruit, and fruit ripeness estimation. This paper presents a tactile sensor configuration to estimate the stiffness properties of soft tissues, using fruit as case study. Previous stiffness-measuring tactile sensor models suffer from unstable and infinite sensor outputs due to irregularities and inclination angles of soft tissue surfaces. The proposed configuration introduces two low stiffness springs at the extreme ends of the sensor with one high stiffness spring in-between. This study also presents a closed form mathematical model that considers the maximum inclination angle of the tissue’s (fruit) surface, and a finite element analysis to verify the mathematical model, which yielded stable sensor outputs. A prototype of the proposed configuration was fabricated and tested on kiwifruit samples. The experimental tests revealed that the sensor’s output remained stable, finite, and independent on both the inclination angle of the fruit surface and applied displacement of the sensor. The sensor distinguished between kiwifruit at various stiffness and ripeness levels with an output error ranging between 0.18 % and 3.50 %, and a maximum accuracy of 99.81 %, which is reasonable and competitive compared to previous design concepts. | en |
dc.description.version | Accepted version | en |
dc.format.extent | Pages 5309-5324 | en |
dc.format.extent | 16 page(s) | en |
dc.format.mimetype | application/pdf | en |
dc.identifier.doi | https://doi.org/10.1007/s12206-022-0943-7 | en |
dc.identifier.eissn | 1976-3824 | en |
dc.identifier.issn | 1738-494X | en |
dc.identifier.issue | 10 | en |
dc.identifier.orcid | Erukainure, Frank [0000-0002-7640-391X] | en |
dc.identifier.uri | http://hdl.handle.net/10919/116694 | en |
dc.identifier.volume | 36 | en |
dc.language.iso | en | en |
dc.publisher | Korean Society for Mechanical Engineers | en |
dc.rights | In Copyright | en |
dc.rights.uri | http://rightsstatements.org/vocab/InC/1.0/ | en |
dc.subject | ANSYS Mechanical APDL | en |
dc.subject | Fruit quality and sorting | en |
dc.subject | Kiwifruit elastic modulus | en |
dc.subject | Kiwifruit tissue stiffness | en |
dc.subject | Surface roughness | en |
dc.subject | Tactile sensing | en |
dc.subject | INDENTATION TESTS | en |
dc.subject | 40 Engineering | en |
dc.subject | 4009 Electronics, Sensors and Digital Hardware | en |
dc.subject | Bioengineering | en |
dc.subject | 4017 Mechanical engineering | en |
dc.title | Design and experimental testing of a tactile sensor for self-compensation of contact error in soft tissue stiffness measurement | en |
dc.title.serial | Journal of Mechanical Science and Technology | en |
dc.type | Article - Refereed | en |
dc.type.dcmitype | Text | en |
dc.type.other | Article | en |
dc.type.other | Journal | en |
pubs.organisational-group | /Virginia Tech | en |
pubs.organisational-group | /Virginia Tech/Agriculture & Life Sciences | en |
pubs.organisational-group | /Virginia Tech/Agriculture & Life Sciences/Biological Systems Engineering | en |
pubs.organisational-group | /Virginia Tech/Graduate students | en |
pubs.organisational-group | /Virginia Tech/Graduate students/Doctoral students | en |
