Metalorganic chemical vapor deposition of layered structure oxides

Simple item page
dc.contributor.assigneeSharp Kabushikien
dc.contributor.assigneeCedraeus Incorporateden
dc.contributor.assigneeVirginia Polytechnic Institute and State Universityen
dc.contributor.departmentElectrical and Computer Engineeringen
dc.contributor.inventorDesu, Seshu B.en
dc.contributor.inventorTao, W.en
dc.date.accessed2016-08-19en
dc.date.accessioned2016-08-24T17:53:43Zen
dc.date.available2016-08-24T17:53:43Zen
dc.date.filed1994-09-02en
dc.date.issued1995-12-26en
dc.description.abstractA method of fabricating high quality layered structure oxide ferroelectric thin films. The deposition process is a chemical vapor deposition process involving chemical reaction between volatile metal organic compounds of various elements comprising the layered structure material to be deposited, with other gases in a reactor, to produce a nonvolatile solid that deposits on a suitably placed substrate such as a conducting, semiconducting, insulating, or complex integrated circuit substrate. The source materials for this process may include organometallic compounds such as alkyls, alkoxides, .beta.-diketonates or metallocenes of each individual element comprising the layered structure material to be deposited and oxygen. Preferably, the reactor in which the deposition is done is either a hot wall or a cold wall reactor and the vapors are introduced into this reactor either through a set of bubblers or through a direct liquid injection system. The ferroelectric films can be used for device applications such as in capacitors, dielectric resonators, heat sensors, transducers, actuators, nonvolatile memories, optical waveguides and displays.en
dc.format.mimetypeapplication/pdfen
dc.identifier.applicationnumber8300339en
dc.identifier.patentnumber5478610en
dc.identifier.urihttp://hdl.handle.net/10919/72302en
dc.identifier.urlhttp://pimg-fpiw.uspto.gov/fdd/10/786/054/0.pdfen
dc.language.isoenen
dc.publisherUnited States Patent and Trademark Officeen
dc.subject.cpcC23C16/40en
dc.subject.cpcH01L28/55en
dc.subject.cpcH01L21/31122en
dc.subject.cpcH01L21/31691en
dc.subject.cpcH01L28/60en
dc.subject.cpcH01L28/75en
dc.subject.uspc257/E21.009en
dc.subject.uspcother257/E21.011en
dc.subject.uspcother257/E21.021en
dc.subject.uspcother257/E21.253en
dc.subject.uspcother257/E21.272en
dc.subject.uspcother427/573en
dc.subject.uspcother427/81en
dc.subject.uspcother427/96.8en
dc.subject.uspcother427/124en
dc.subject.uspcother427/126.3en
dc.subject.uspcother427/161en
dc.subject.uspcother427/255.32en
dc.subject.uspcother427/294en
dc.subject.uspcother427/314en
dc.subject.uspcother427/404en
dc.subject.uspcother427/419.3en
dc.subject.uspcother427/419.7en
dc.subject.uspcother427/576en
dc.subject.uspcother427/585en
dc.subject.uspcother427/586en
dc.subject.uspcother427/595en
dc.subject.uspcother438/2en
dc.subject.uspcother438/3en
dc.subject.uspcother438/606en
dc.subject.uspcother438/608en
dc.subject.uspcother438/674en
dc.titleMetalorganic chemical vapor deposition of layered structure oxidesen
dc.typePatenten
dc.type.dcmitypeTexten
dc.type.patenttypeutilityen

Files

Original bundle
Now showing 1 - 1 of 1

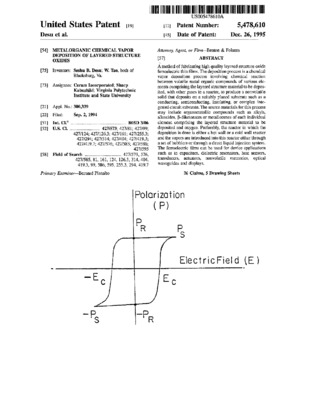

Thumbnail Image
