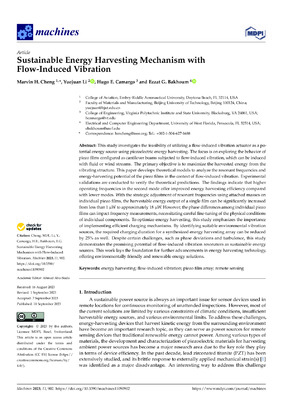

Sustainable Energy Harvesting Mechanism with Flow-Induced Vibration
| dc.contributor.author | Cheng, Marvin H. | en |
| dc.contributor.author | Li, Yuejuan | en |
| dc.contributor.author | Camargo, Hugo E. | en |
| dc.contributor.author | Bakhoum, Ezzat G. | en |
| dc.date.accessioned | 2023-09-27T14:42:35Z | en |
| dc.date.available | 2023-09-27T14:42:35Z | en |
| dc.date.issued | 2023-09-11 | en |
| dc.date.updated | 2023-09-27T12:36:22Z | en |
| dc.description.abstract | This study investigates the feasibility of utilizing a flow-induced vibration actuator as a potential energy source using piezoelectric energy harvesting. The focus is on exploring the behavior of piezo films configured as cantilever beams subjected to flow-induced vibration, which can be induced with fluid or wind streams. The primary objective is to maximize the harvested energy from the vibrating structure. This paper develops theoretical models to analyze the resonant frequencies and energy-harvesting potential of the piezo films in the context of flow-induced vibration. Experimental validations are conducted to verify the theoretical predictions. The findings indicate that higher operating frequencies in the second mode offer improved energy harvesting efficiency compared with lower modes. With the strategic adjustment of resonant frequencies using attached masses on individual piezo films, the harvestable energy output of a single film can be significantly increased from less than 1 μW to approximately 18 μW. However, the phase differences among individual piezo films can impact frequency measurements, necessitating careful fine-tuning of the physical conditions of individual components. To optimize energy harvesting, this study emphasizes the importance of implementing efficient charging mechanisms. By identifying suitable environmental vibration sources, the required charging duration for a synthesized energy harvesting array can be reduced by 25% as well. Despite certain challenges, such as phase deviations and turbulence, this study demonstrates the promising potential of flow-induced vibration resonators as sustainable energy sources. This work lays the foundation for further advancements in energy harvesting technology, offering environmentally friendly and renewable energy solutions. | en |
| dc.description.version | Published version | en |
| dc.format.mimetype | application/pdf | en |
| dc.identifier.citation | Cheng, M.H.; Li, Y.; Camargo, H.E.; Bakhoum, E.G. Sustainable Energy Harvesting Mechanism with Flow-Induced Vibration. Machines 2023, 11, 902. | en |
| dc.identifier.doi | https://doi.org/10.3390/machines11090902 | en |
| dc.identifier.uri | http://hdl.handle.net/10919/116341 | en |
| dc.language.iso | en | en |
| dc.publisher | MDPI | en |
| dc.rights | Creative Commons Attribution 4.0 International | en |
| dc.rights.uri | http://creativecommons.org/licenses/by/4.0/ | en |
| dc.subject | energy harvesting | en |
| dc.subject | flow-induced vibration | en |
| dc.subject | piezo film array | en |
| dc.subject | remote sensing | en |
| dc.title | Sustainable Energy Harvesting Mechanism with Flow-Induced Vibration | en |
| dc.title.serial | Machines | en |
| dc.type | Article - Refereed | en |
| dc.type.dcmitype | Text | en |
